Key Specs

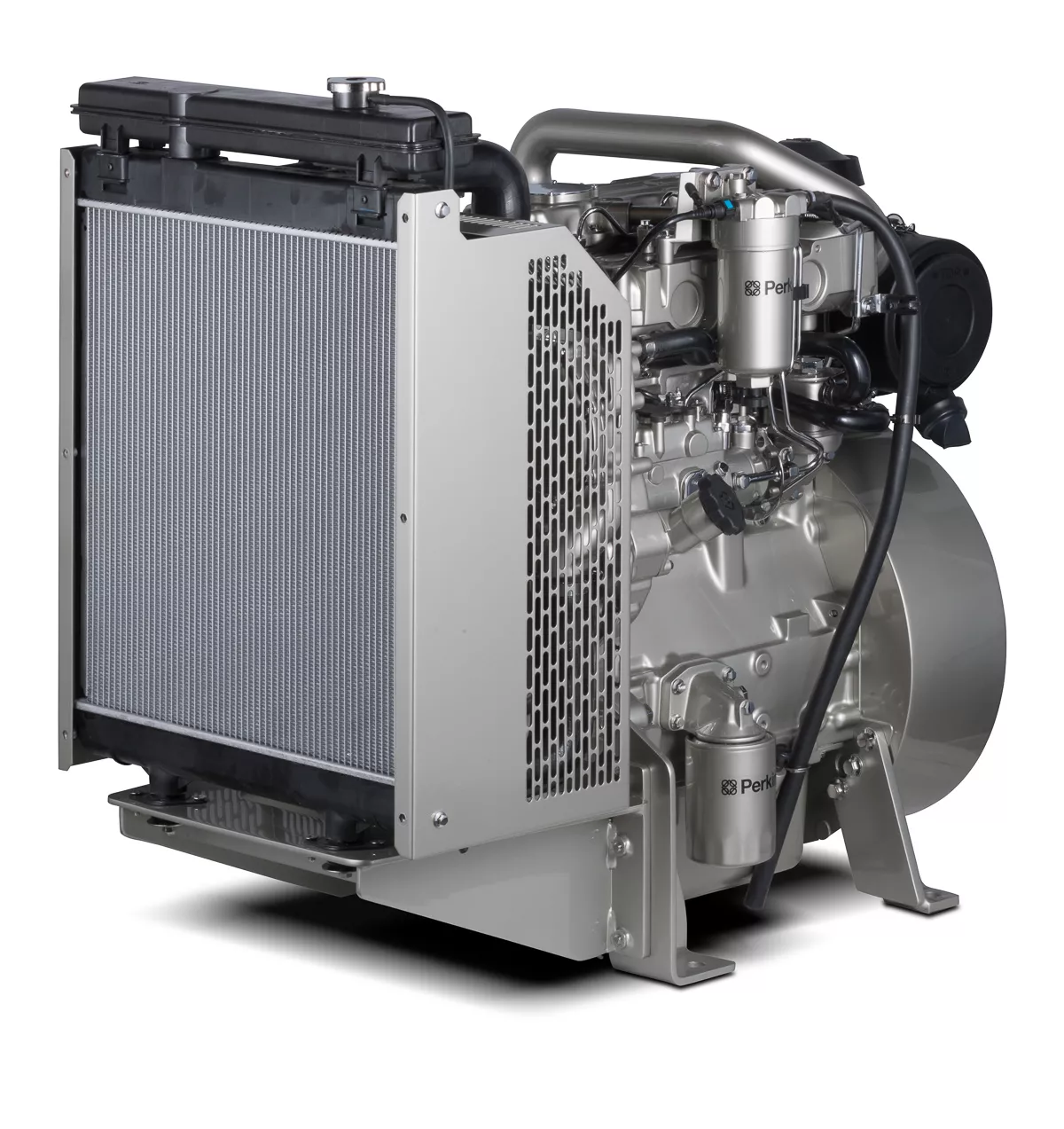

Our 1103 range of electric power engines provides cost effective power solutions for prime and standby generation. The engines also meet up to EU Stage IIIA/U.S. EPA Tier 3 equivalent emission standards. The compact 3 cylinder, 3.3 litre engines feature exceptional performance criteria in fuel economy for prime power applications and high load acceptance for standby installations.
Displaying 1-6 of 4
| Gross Mechanical Output | 42 - 52 kWm 42 - 52 kWm |
| Typical Electrical Output | 46-59 kVA (37-47 kWe) 46-59 kVA (37-47 kWe) |
| Rated Speed | 1500/1800 rpm 1500/1800 rpm |
| Emissions | EU Stage II/U.S. EPA Tier 2 EU Stage II/U.S. EPA Tier 2 |
| Prime | 46 kVA 46 kVA |
| Standby | 51 kVA 51 kVA |
| Prime | 42 kWe 42 kWe |
| Standby | 47 kWe 47 kWe |
| Number of Cylinders | 3 inline 3 inline |
| Bore | 4.13 in 105 mm |
| Stroke | 5 in 127 mm |
| Displacement | 202 in³ 3.3 l |
| Compression Ratio | 18.23:1 18.23:1 |
| Aspiration | Turbocharged Turbocharged |
| Combustion System | Direct injection Direct injection |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Cooling System | Liquid Liquid |
| Aftertreatment | - - |
| Typical Alternator Efficiency | 90% 90% |
| Switchable | No No |
| Length | 41.1 in 1045 mm |
| Width | 24.8 in 631 mm |
| Height | 37.4 in 951 mm |
| Dry Weight | 752 lb 341 kg |
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
| Prime Power | Power available at variable load in lieu of a main power network. Overload of 10% is permitted for one hour in every 12 hours of operation. Power available at variable load in lieu of a main power network. Overload of 10% is permitted for one hour in every 12 hours of operation. |
| Standby Power | Power available at variable load in the event of a main power network failure. No overload is permitted. Power available at variable load in the event of a main power network failure. No overload is permitted. |
