1706J-E93TAG

Electric Power Generation 1706J-E93TAG

Request Consultation Find your Distributor

Key Specs

Gross Mechanical Output
231-338 kWm
231-338 kWm
Typical Electrical Output
263-377 kVA (210-302 kWe)
263-377 kVA (210-302 kWe)
Emissions
EU Stage V, U.S. EPA Tier 4 Final
EU Stage V, U.S. EPA Tier 4 Final

Tools And Expert Help At Every Turn

Overview

The Perkins® 1700 Series is engineered to provide class leading performance and maximise competitive advantage for our customers.

Developed on a latest generation 9.3 litre core, the 1706 offers greater capability and more flexibility to our customers from a simple plug and play product.

Benefits

Delivers 18% more power compared to previous models

Engine package is 12% lighter than previous models

Class leading productivity with Global Certification

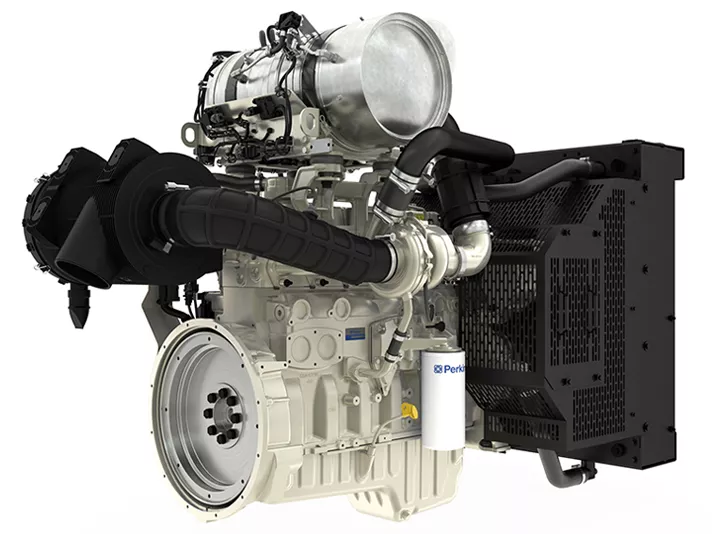

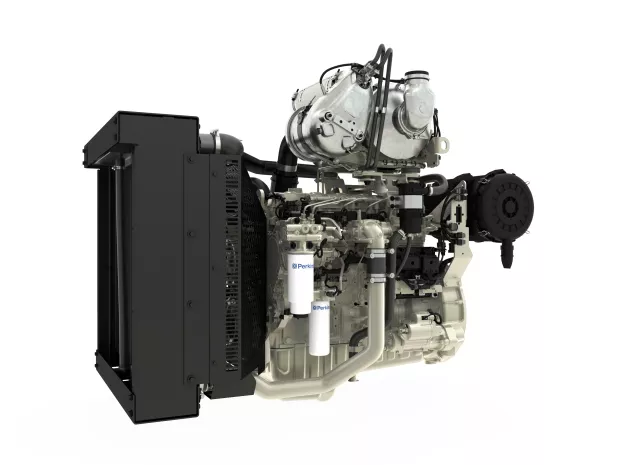

Media Gallery

1706J-E93TAG
1706J-E93TAG

Features At A Glance

Displaying 1-6 of 6

Perkins

Maximised Productivity

Maximised productivity by achieving key power nodes with clean rapid starting in all conditions whilst delivering impressive steady state and transient response. Options between EU Stage V certified products for the EU mobile genset
market and U.S. EPA Tier 4 Final certified products for the US mobile genset market ensures flexibility for our customers tailored to their needs.

Perkins

Ease of Installation

Exceptional power density enables standardisation across numerous applications providing ease of
integration and service accessibility. Better packaging options ship loose or engine mounted aftertreatment. Simplified aftertreatment solution compatible with switchable Stage V and Tier 4 Final solution.
Perkins

Cost of Ownership

The 1700 series offers fuel consumption and low oil consumption whilst meeting the Stage V and Tier 4 Final emissions standards; all delivered from a proven reliable core engine delivering low daily
operating costs.
Perkins

Low Periodic Running Costs

Perkins engines are designed and developed with our customer in mind. Keeping service cost to a minimum ensures low periodic running costs.
This is achieved through 500 hour service intervals for oil and fuel as standard under all operating conditions.
Perkins

Productive Life

The long productive life of our products is supported through the Perkins 12 month warranty as standard for prime power applications, and the 1500 hour or two year emissions warranty. For
further peace of mind, there is also the option to purchase Extended Service Contracts through Perkins Platinum Protection. Contact your
local distributor or visit www.perkins.com/en_GB/aftermarket/perkinsplatinum-protection.
Perkins

High Quality as Standard

Perkins takes pride in manufacturing all products globally to the same high quality standard. All of our products are manufactured in world-class facilities to ensure highest quality for your peace of
mind.
Specifications Standard Equipment

Product Specifications for 1706J-E93TAG

Download Print
Gross Mechanical Output 231-338 kWm 231-338 kWm
Typical Electrical Output 263-377 kVA (210-302 kWe) 263-377 kVA (210-302 kWe)
Rated Speed 1500/1800 rpm 1500/1800 rpm
Emissions EU Stage V, U.S. EPA Tier 4 Final EU Stage V, U.S. EPA Tier 4 Final
Prime 263-312 kVA 263-312 kVA
Standby 290-343 kVA 290-343 kVA
Prime 273 kWe 273 kWe
Standby 302 kWe 302 kWe
Number of Cylinders 6 vertical inline 6 vertical inline
Bore 4.5 in 115 mm
Stroke 5.9 in 149 mm
Displacement 567 in³ 9.3 l
Compression Ratio 17.0:1 17.0:1
Aspiration Turbocharged aftercooled Turbocharged aftercooled
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Cooling System Liquid Liquid
Aftertreatment DOC+DPF+SCR DOC+DPF+SCR
Typical Alternator Efficiency 94% 94%
Switchable Yes Yes
Length 84 in 2129 mm
Width 41 in 1045 mm
Height 65 in 1645 mm
Dry Weight 2637 lb 1196 kg
Length 33.4 in 849 mm
Width 29.1 in 739 mm
Height 17.4 in 441 mm
Weight 212 lb 96 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options
Prime Power Power available at variable load in lieu of a main power network. Overload of 10% is permitted for one hour in every 12 hours of operation. Power available at variable load in lieu of a main power network. Overload of 10% is permitted for one hour in every 12 hours of operation.
Standby Power Power available at variable load in the event of a main power network failure. No overload is permitted. Power available at variable load in the event of a main power network failure. No overload is permitted.

1706J-E93TAG Standard Equipment

Print

Air inlet system

  • Standard air cleaners

Cooling system

  • Tropical radiator as standard ensures optimal cooling performances all year round in any state
  • 50:50 water glycol mix

Control system

  • Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
  • Full electronic control system. All connectors and wiring looms waterproof and designed to withstand harsh environments

Flywheels and flywheel housing

  • Flywheel housing

Fuel system

  • Electronic high pressure common rail
  • Fuel filter, fuel transfer pump, fuel priming pump

Oil system

  • Aluminium sump
