2806J-E18TAG1

Electric Power Generation 2806J-E18TAG1

Request Consultation Find your Distributor

Key Specs

Gross Mechanical Output
559 kWm
559 kWm
Typical Electrical Output
554-625 kVA (444-500 kWe)
554-625 kVA (444-500 kWe)
Emissions
EU Stage V
EU Stage V

Tools And Expert Help At Every Turn

Overview

The Perkins® 2000 Series is a family of proven 6 cylinder 13,
15 and 18 litre diesel engines, designed to address today's
uncompromising demands within the power generation industry for
both prime, standby and mobile applications.
The 2806J-E18TAG1 joins Perkins's expanding suite of engines for
power generation that meet the most stringent emission standards.
The engine and aftertreatment share a common heritage with
on-highway truck and heavy duty construction engines, offering
superior performance and reliability.

Media Gallery

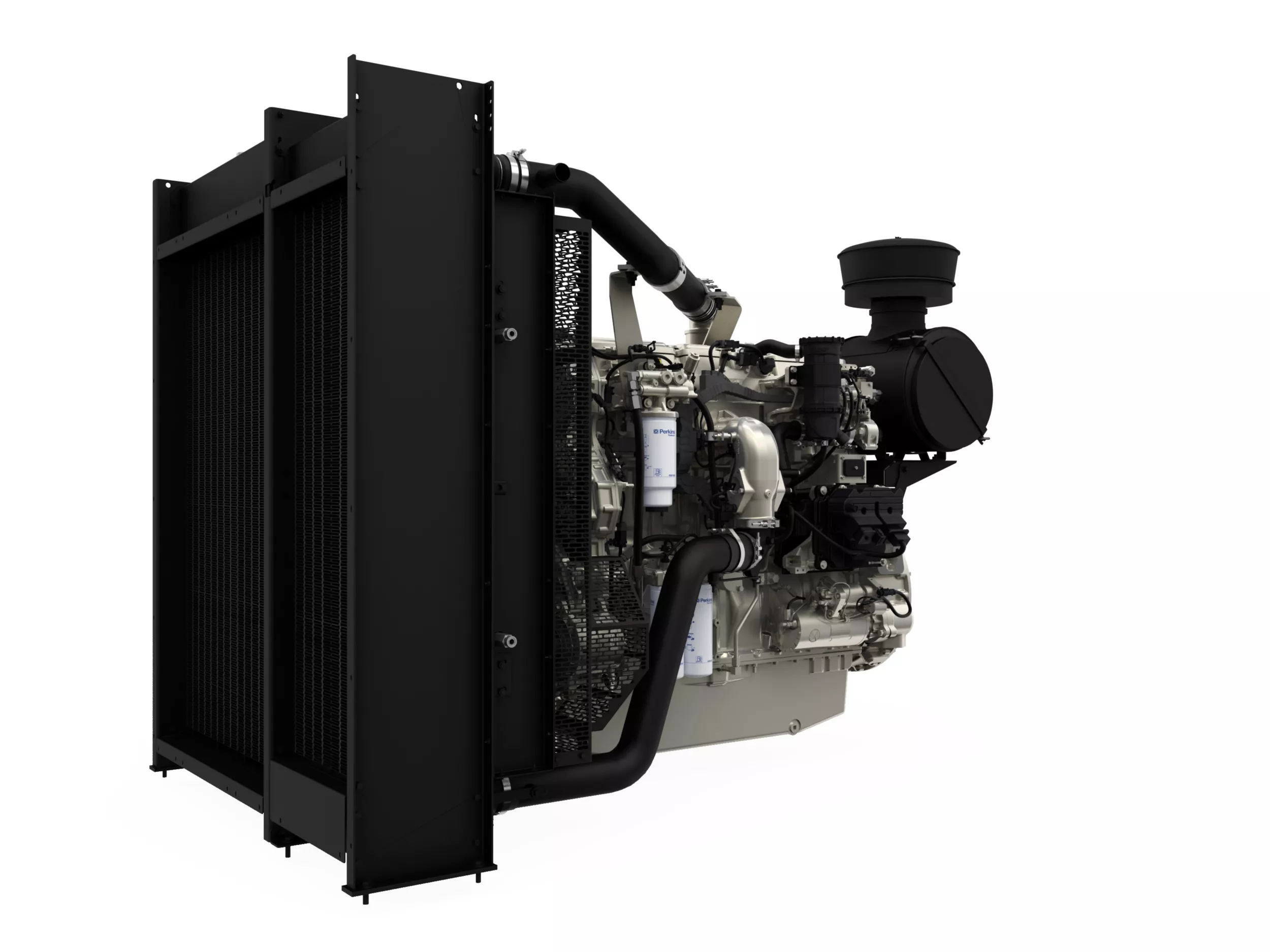

2806J-E18TAG1 Electric Power Diesel Engine

Features At A Glance

Displaying 1-6 of 4

Perkins

Compact, clean and efficient power

Exceptional power to weight ratio and compact size give optimum power density for ease of installation and more cost effective transportation

Designed to provide excellent service access for ease of maintenance
Perkins

Economic power

Mechanically operated unit fuel injectors with electronic control combined with carefully matched turbocharging give excellent fuel atomsation and combustion with optimum economy
Perkins

Reliable power

Developed and tested using the latest engineering techniques and finite element analysis for high reliability, low oil usage and low wear rates

High compression ratios ensure clean rapid starting in all conditions

Perkins global product support is designed to enhance the customer experience of owning a Perkins powered machine. We deliver this through the quality of our distribution network, extensive global coverage and a range of Perkins supported OEM partnership options. So whether you are an end-user or an equipment manufacturer our engine expertise is essential to your success
Perkins

Product support

Perkins actively pursues product support excellence by ensuring our distribution network invest in their territory � strengthening relationships and providing more value to you, our customer

Through an experienced global network of distributors and dealers, fully trained engine experts deliver total service support around the clock, 365 days a year. They have a comprehensive suite of web based tools at their fingertips covering technical information, parts identification and ordering systems, all dedicated to maximising the productivity of your engine

Throughout the entire life of a Perkins engine, we provide access to genuine OE specification parts and service. We give 100% reassurance that you receive the very best in terms of quality for lowest possible cost .. wherever your Perkins powered machine is operating in the world
Specifications Standard Equipment

Product Specifications for 2806J-E18TAG1

Download Print
Gross Mechanical Output 559 kWm 559 kWm
Typical Electrical Output 554-625 kVA (444-500 kWe) 554-625 kVA (444-500 kWe)
Rated Speed 1500 rpm 1500 rpm
Emissions EU Stage V EU Stage V
Prime 554kVA 554kVA
Standby 610kVA 610kVA
Prime 455 kWe 455 kWe
Standby 500 kWe 500 kWe
Number of Cylinders 6 vertical inline 6 vertical inline
Bore 5.7 in 145 mm
Stroke 7.2 in 183 mm
Displacement 1106 in³ 18.1 l
Compression Ratio 16.0:1 16.0:1
Aspiration Turbocharged aftercooled Turbocharged aftercooled
Combustion System Mechanical electronic unit injection Mechanical electronic unit injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Cooling System Liquid Liquid
Aftertreatment DOC+DPF+SCR DOC+DPF+SCR
Typical Alternator Efficiency 95% 95%
Switchable yes yes
Length 97 in 2457 mm
Width 60 in 1520 mm
Height 78 in 1985 mm
Dry Weight 4552 lb 2065 kg
Length 97 in 2458 mm
Width 60 in 1520 mm
Height 69 in 1741 mm
Dry Weight 4552 lb 2065 kg
Length 43.5 in 1106 mm
Width 45.8 in 1164 mm
Height 27.4 in 695 mm
Weight 580 lb 263 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options
Prime Power Variable load. Unlimited hours usage with an average load of 70% of the published prime power rating. A 10% overload is available for 1 hour in every 12 hour of operation. Variable load. Unlimited hours usage with an average load of 70% of the published prime power rating. A 10% overload is available for 1 hour in every 12 hour of operation.
Standby Power Variable load. Limited to 500 hours annual usage up to 300 hours of which may be continuous running. No overload is permitted. Variable load. Limited to 500 hours annual usage up to 300 hours of which may be continuous running. No overload is permitted.

2806J-E18TAG1 Standard Equipment

Print

Air inlet system

  • Mounted air filter

Cooling system

  • Gear-driven circulating pump
  • Mounted belt-driven pusher fan
  • Radiator incorporating air-to-air charge cooler, (supplied loose)
  • System designed for ambients up to 50�C (122�F)

Electrical equipment

  • 3 level engine protection system
  • 24 volt starter motor and 24 volt 115 amp alternator with DC output
  • ECM mounted on engine with wiring looms and sensors

Flywheels and flywheel housing

  • High inertia flywheel to SAE J620 size 14
  • SAE No. 1 flywheel housing

Fuel system

  • Fuel cooler
  • Governing to ISO 8528-5 class G2 with isochronous capability
  • Mechanically actuated electronically controlled unit fuel injectors with full authority electronic control
  • Replaceable spin on fuel filter elements with primary filter/water separator

Mountings

  • Front engine mounting bracket

Oil system

  • Full-flow replaceable filter
  • Oil cooler integral with filter header
  • Wet sump with filler and dipstick

Optional equipment

  • 110 volt/240 volt immersion heater
  • Additional speed sensor
  • Air filter rain hood
  • Temperature and pressure sensors for gauges
  • Tool kit
  • Twin starters/facility for second starter
