1104C-44

Industrial Diesel Engines 1104C-44

Key Specs

Maximum Power
85.8 hp
64 kW
Maximum Torque
227 lb-ft @ 1200 rpm
308 Nm @ 1200 rpm
Emissions
EU Stage II/U.S. EPA Tier 2 equivalent
EU Stage II/U.S. EPA Tier 2 equivalent

Tools And Expert Help At Every Turn

Overview

Whatever your application, there's an 1104 engine for you. Part of the Perkins 1100 Series, the range's 4 cylinder, 4.4 litre engines are smooth and quiet in operation. Designed to meet EU Stage II/IIIA and U.S. EPA Tier 2/Tier 3 equivalent emissions standards, the 1104 range offer a choice of mechanical or electronically controlled common rail engines. Electronically controlled engines deliver the right fuel injection for the load applied to the engine. Common front and rear ends, connection points and components across the range, making it easy to install a different 1100 Series engine in your application.

Media Gallery

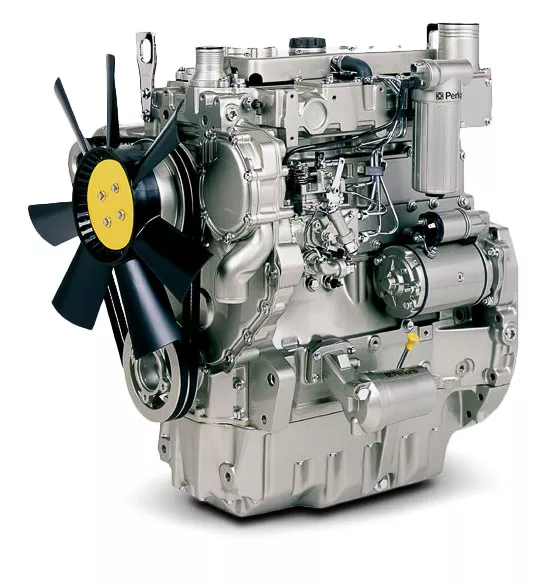

1104C-44 Industrial Diesel Engine

Features At A Glance

Displaying 1-6 of 5

Perkins

Designed for lesser regulated territories

The 1100 Series range of engines have been specifically designed for use in territories with Stage II/IIIA and Tier 2/3 equivalent emissions standards, using the best technologies to ensure a reliable and easy to maintain machine. With a choice of naturally aspirated, turbocharged and turbocharged aftercooled it offers the best combination of power delivery and response.
Perkins

Ease of maintenance

All of the engines have 500 hour service intervals. And single side service components, for ease of end user servicing.
Perkins

Easy to upgrade

Common front and rear ends, connection points and components across the range mean that you can easily install a different 1100 Series engine in your application.
Perkins

Expertise whenever you need it

With our network of distributors, you will find all the advice you need to ensure you get the right engine. By building strong relationships with you, we make sure you have access to the full power of the Perkins brand and expertise. Our fully trained experts deliver total service support 24/7, 365 days of the year. Whether you need technical information, parts identification or ordering, our distribution network is there to make sure your Perkins engine keeps on running at peak performance.
Perkins

Oil and fuel filtration

The high quality oil and fuel filtration on our 1100 Series range produces an engine that is reliable and durable. Ecoplus fuel filtration is available to boost its clean running qualities and the engine is capable of running on a wide range of global fuels including biodiesel.
Specifications Standard Equipment

Product Specifications for 1104C-44

Download Print
Maximum Power 85.8 hp 64 kW
Maximum Torque 227 lb-ft @ 1200 rpm 308 Nm @ 1200 rpm
Rated Speed 2400 rpm 2400 rpm
Minimum Power 67.1 hp 50 kW
Emissions EU Stage II/U.S. EPA Tier 2 equivalent EU Stage II/U.S. EPA Tier 2 equivalent
Number of Cylinders 4 inline 4 inline
Cycle 4 stroke 4 stroke
Bore 4.1 in 105 mm
Stroke 5 in 127 mm
Displacement 269 in³ 4.4 l
Compression Ratio 19.3:1 19.3:1
Aspiration Naturally aspirated Naturally aspirated
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment - -
Cooling System Liquid Liquid
Length 26.1 in 663 mm
Width 18.5 in 470 mm
Height 32 in 812 mm
Dry Weight 787 lb 357 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

1104C-44 Standard Equipment

Print

Air System

  • Cast iron exhaust manifold – centre side outlet
  • Integral inlet manifold
  • Turbo outlet orientation

Electrical and Electronics

  • 12 and 24 volt alternator 55, 65, 85, 100 amp
  • 12 and 24 volt starter motor

Cooling System

  • Cooling fan
  • Gear-driven coolant pump
  • Water outlet

Fuel System

  • Plastic J2044 fuel system standard

General

  • Cast iron engine block
  • Balancer or non-balancer
  • Glow plug starting aid

Oil System

  • Lubricating oil sump
  • Dipstick (left or right position)

Power Take-Off (PTO)

  • Provision for PTOs

See how 1104C-44 compares against frequently compared products.

Industrial
Selected
1104C-44
1104C-44
Maximum Power
85.8 hp
64 kW
Maximum Torque
227 lb-ft @ 1200 rpm
308 Nm @ 1200 rpm
Emissions
EU Stage II/U.S. EPA Tier 2 equivalent
EU Stage II/U.S. EPA Tier 2 equivalent
Industrial
1104D-E44TA
1104D-E44TA
Maximum Power
142 hp
106 kW
Maximum Torque
411.2 lb-ft @ 1400 rpm
558 Nm @ 1400 rpm
Emissions
UN ECE R96 Stage IIIA, China Nonroad Stage III, Brazil MAR-1
UN ECE R96 Stage IIIA, China Nonroad Stage III, Brazil MAR-1
View Details
Industrial
1104C-44T
1104C-44T
Maximum Power
99.9 hp
74.5 kW
Maximum Torque
306 lb-ft @ 1350 rpm
415 Nm @ 1350 rpm
Emissions
EU Stage II/U.S. EPA Tier 2 equivalent
EU Stage II/U.S. EPA Tier 2 equivalent
View Details
