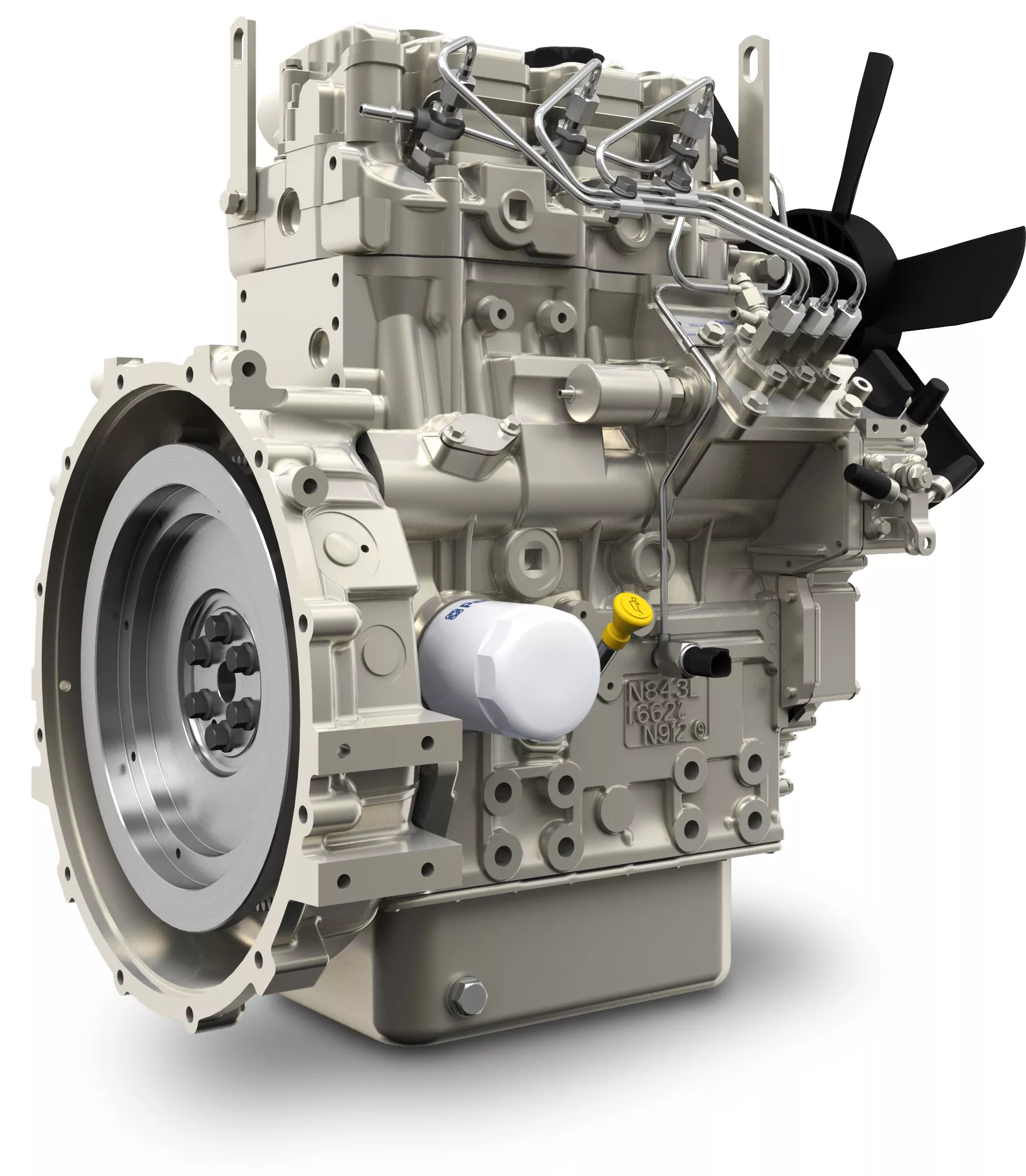

403J-17

Industrial Diesel Engines 403J-17

Key Specs

Maximum Power
24.6 hp
18.4 kW
Maximum Torque
67.7 lb-ft @ 1600 rpm
91.9 Nm @ 1600 rpm
Emissions
EU Stage V
EU Stage V

Tools And Expert Help At Every Turn

Overview

The 403J-17 is an indirect injection industrial diesel engine that meets both EU Stage V and U.S. EPA Tier 4 Final without the need for electronic control, aftertreatment or exhaust gas recirculation. It is available with many factory configurable options to minimise the costs of machine development and of manufacturing.

Media Gallery

403J Industrial Diesel Engine

Features At A Glance

Perkins

Reliable power

The Perkins® 400 Series have been proven to deliver durable power.
Manufactured in highly automated, modern production facilities they
offer both the choice of wide range of factory configurable options whilst
preserving high quality levels.
Perkins

Tailored for your machines

The 403J-17 is one of four engine options from Perkins at 18.4 kW (24 hp) allowing OEMs to balance different
installation, operating and commercial requirements. This model is particularly adapted to machines which need
high torque, lower speed operation or good cold start capability.
Perkins

Quiet

The stiff block and indirect injection system make this a quiet engine, minimising operator fatigue and saving
money for OEMs in sound attenuation measures.
Specifications Standard Equipment

Product Specifications for 403J-17

Download Print
Maximum Power 24.6 hp 18.4 kW
Maximum Torque 67.7 lb-ft @ 1600 rpm 91.9 Nm @ 1600 rpm
Rated Speed 2200-2800 2200-2800
Minimum Power 24.6 hp 18.4 kW
Emissions EU Stage V EU Stage V
Number of Cylinders 3 inline 3 inline
Cycle 4 stroke 4 stroke
Bore 3.9 in 84 mm
Stroke 3.3 in 100 mm
Displacement 103.7 in³ 1.7 l
Compression Ratio 23.0:1 23.0:1
Aspiration Naturally aspirated Naturally aspirated
Combustion System Indirect injection Indirect injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment - -
Cooling System liquid liquid
Total Lubricating Oil Capacity 1.58 gal (US) 6 l
Total Coolant Capacity 0.66 gal (US) 2.5 l
Length 22.5 in 572 mm
Width 17.8 in 453 mm
Height 25.3 in 643 mm
Dry Weight 359 lb 163 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

403J-17 Standard Equipment

Print

Electrical and Electronics

  • Alternator 12 volt, 40, 65 and 85 amp
  • Electronic controlled governing
  • Starter motor 12 volt, 2.0 kW
  • Glow plug starting aid
  • Electronic shut off solenoid (ESOS)

Flywheel and Flywheel Housing

  • Flywheel Housing SAE 4
  • Flywheel SAE 7 1/2

Cooling System

  • Coolant temperature switch
  • Cooling fan

Fuel System

  • Fuel injection pump
  • Split element fuel filter

General

  • Gradeability 30° continuous

Oil System

  • Dipstick options available
  • Closed circuit breather
  • Lubricating oil pressure switch
  • Spin-on lubricating oil filter

Power Take-Off (PTO)

  • SAE A-A PTO
