403J-E17T

Industrial Open Power Units 403J-E17T

Key Specs

Maximum Power
48 hp
36 kW
Maximum Torque
122 lb-ft @ 1600 rpm
166 Nm @ 1600 rpm
Emissions
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)

Tools And Expert Help At Every Turn

Overview

The Perkins® 403J-E17T IOPU provides a complete plug-and-play power solution to meet EU Stage V, U.S. EPA Tier 4 Final and Japan 2014 (Tier 4 Final) emission standards. With a wide choice of options, engine configurations and robust technologies, you can integrate the 403J-E17T into equipment with minimal re-engineering that can help save valuable costs.

Media Gallery

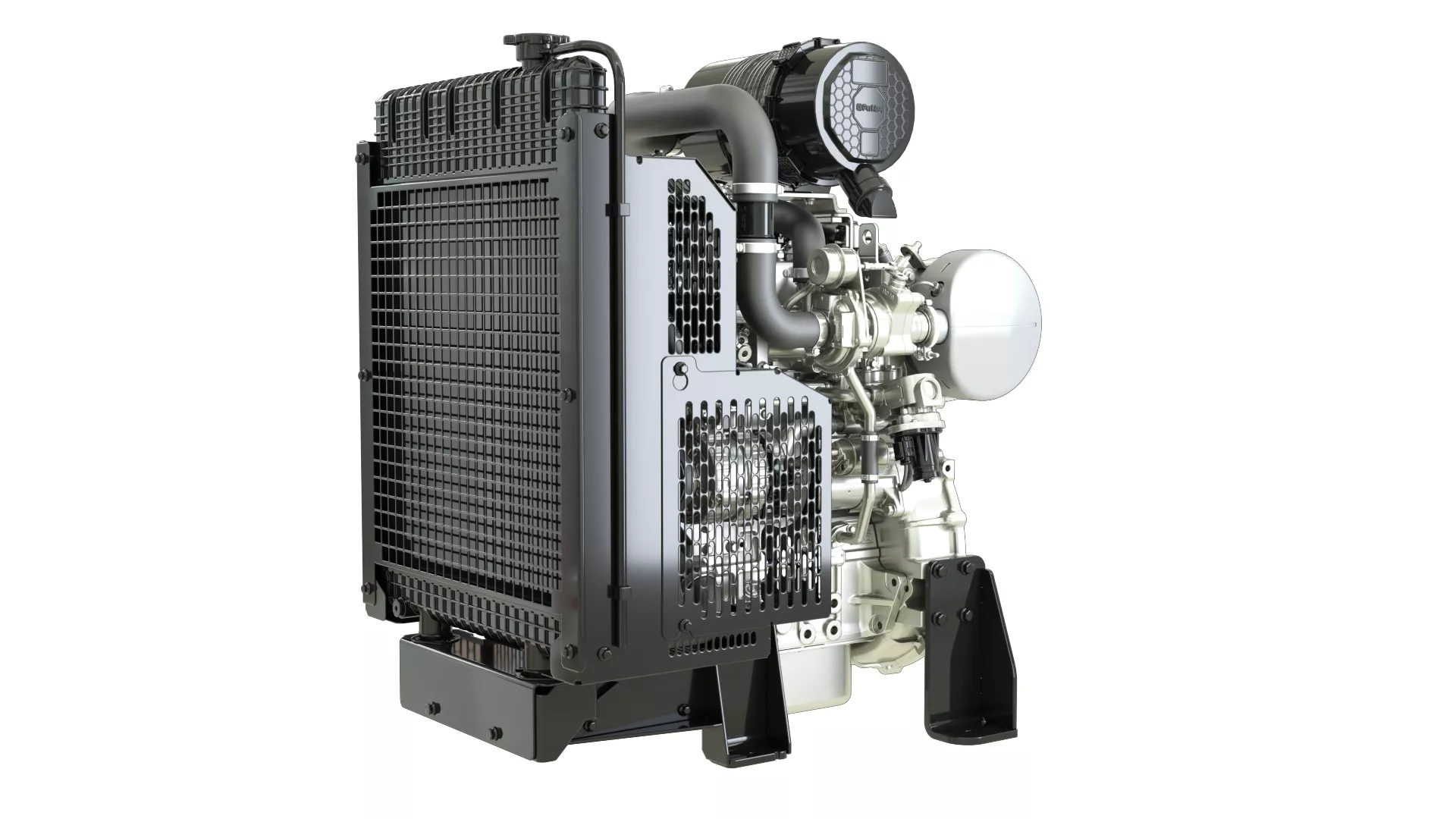

403J-E17T Industrial Open Power Unit

Features At A Glance

Perkins

Low cost installation

Perkins IOPU is available with aftertreatment and air filter ready mounted from factory.

Additionally, multiple installation options provide an easy installation for OEM’s and minimise the IOPU total size to enable a low cost installation into your machine.
Perkins

Powerful performance

Broad range of options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Improved power by 24 percent and torque by 38 percent over the previous generation Perkins engine.

Fuel efficiency optimised to match operating cycles of a wide range of non-road equipment encourages standardisation across numerous applications or OEM variants to help reduce your variety.
Perkins

Straightforward maintenance

Oil service is only needed every 500 hours.

Service points are located on the cold side of the engine for a safer service.

Factory fitted Diesel Particulate Filter is made for the life of your engine and no workcycle interruption for regeneration.
Specifications Standard Equipment

Product Specifications for 403J-E17T

Download Print
Maximum Power 48 hp 36 kW
Maximum Torque 122 lb-ft @ 1600 rpm 166 Nm @ 1600 rpm
Rated Speed 2800 rpm 2800 rpm
Emissions EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final) EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
Number of Cylinders 3 inline 3 inline
Bore 3.3 in 84 mm
Stroke 3.9 in 100 mm
Displacement 101 in³ 1.662 l
Compression Ratio 17.0:1 17.0:1
Aspiration Turbocharged Turbocharged
Combustion System Direct Injection Direct Injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment DOC+DPF DOC+DPF
Length 33.6 in 854 mm
Width 23.5 in 596 mm
Height 37.8 in 961 mm
Dry Weight 494 lb 224 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

403J-E17T Standard Equipment

Print

Air System

  • Turbocharged

Electrical and Electronics

  • Alternator 12 volts, 85 amp
  • Electronic control module – chassis mounted
  • Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
  • Glow plug starting aid
  • Starter motor 12 volts
  • The wiring harness, connectors and sensors are waterproof and designed to withstand harsh off-highway environments

Flywheel and Flywheel Housing

  • Flywheel and flywheel housing options

Fuel System

  • Electronic 2000 bar common rail fuel system
  • Fuel filter with water detector

Power Take-Off (PTO)

  • SAE A PTO drive

General

  • Cast iron engine block
  • An extensive range of options are available, enabling you to prepare a specification matched precisely to your needs

See how 403J-E17T compares against frequently compared products.

Industrial
Selected
403J-E17T
403J-E17T
Maximum Power
48 hp
36 kW
Maximum Torque
122 lb-ft @ 1600 rpm
166 Nm @ 1600 rpm
Emissions
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
Industrial
403D-15
403D-15
Maximum Power
32.5 hp
24.2 kW
Maximum Torque
69.6 lb-ft @ 1800 rpm
94.4 Nm @ 1800 rpm
Emissions
EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
View Details
Industrial
404D-22
404D-22
Maximum Power
51 hp
38 kW
Maximum Torque
103.7 lb-ft @ 1800 rpm
140.6 Nm @ 1800 rpm
Emissions
EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
View Details
