Overview

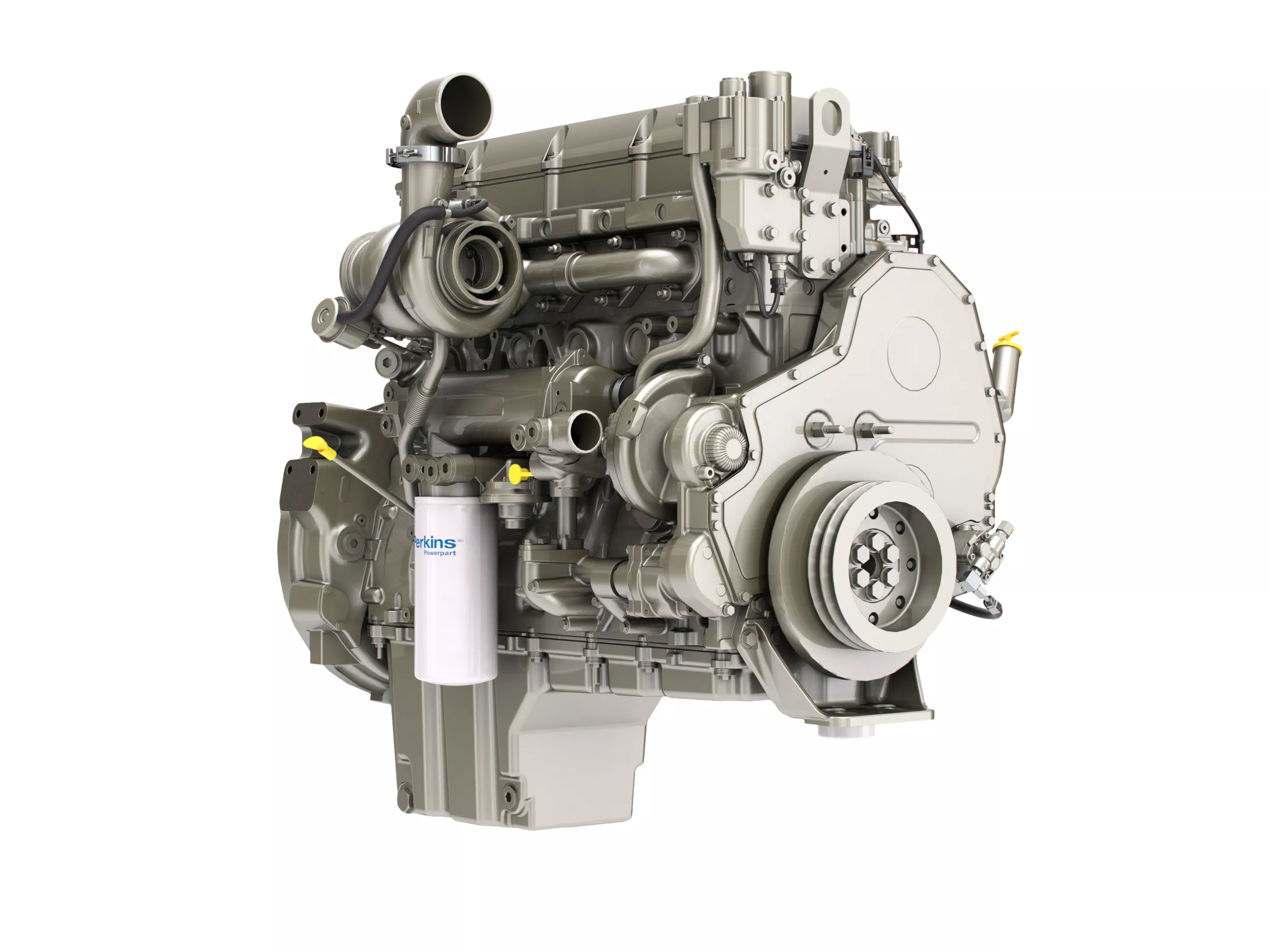

The Perkins® 2206C-E13TA is a 6 cylinder, 12.5 litre engine that produces up to 328 kW (440 hp) of power and 2010 Nm (1482 lb-ft) of torque out of a compact, lightweight package. The 2206C model emits equivalent to U.S. EPA Tier 2.
Industrial Diesel Engines 2206C-E13TA
Key Specs
- Maximum Power
- 440 hp
- 328 kW
- Maximum Torque
- 1482 lb-ft @ 1400 rpm
- 2010 Nm @ 1400 rpm
- Emissions
- Emits equivalent to U.S. EPA Tier 2
- Emits equivalent to U.S. EPA Tier 2
Perkins product brochures and other informational documents are available for your growing business.
Features At A Glance
Dependable power
Less regulated 2206 variants offer outstanding power density up to 32 kW/L (43 hp/L) and are designed to allow simple, dependable, and low-cost installations with a full range of configurable attachment option including installed radiators from the factory.
Optimised fuel consumption
Fuel consumption has been optimised to match operating cycles of a wide range of equipment and applications, with capability of up to 500 hour oil change intervals, enabling low-cost maintenance.
Think global, act local
The Perkins distributor network offers dedicated experience and knowledge of Perkins diesel engines and provides direct customer focus, protecting your assets through extended service contract options.
Product Specifications for 2206C-E13TA
Power Rating
| Maximum Power | 440 hp 328 kW |
| Maximum Torque | 1482 lb-ft @ 1400 rpm 2010 Nm @ 1400 rpm |
| Rated Speed | 1800-2100 rpm 1800-2100 rpm |
| Minimum Power | 414 hp 309 kW |
Emission Standards
| Emissions | Emits equivalent to U.S. EPA Tier 2 Emits equivalent to U.S. EPA Tier 2 |
General
| Number of Cylinders | 6 vertical in-line 6 vertical in-line |
| Displacement | 762.8 in³ 12.5 l |
| Aspiration | Turbocharged aftercooled Turbocharged aftercooled |
| Bore | 5.1 in 130 mm |
| Stroke | 6.2 in 157 mm |
| Combustion System | Direct injection (MEUI) Direct injection (MEUI) |
| Compression Ratio | 17.3:1 or 15.8:1 17.3:1 or 15.8:1 |
| Aftertreatment | None None |
| Total Lubricating Oil Capacity | 10.6 gal (US) 40 l |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Cooling System | Liquid Liquid |
Engine Dimensions*
| Length | 51 in 1295 mm |
| Width | 41 in 1054 mm |
| Height | 47 in 1186 mm |
| Dry Weight | 2509 lb 1138 kg |
| Wet Weight | 2583 lb 1172 kg |
Disclaimer
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
See how 2206C-E13TA compares against frequently compared products.
Industrial
2206C-E13TA
Selected
- Maximum Power
- 440 hp
- 328 kW
- Maximum Torque
- 1482 lb-ft @ 1400 rpm
- 2010 Nm @ 1400 rpm
- Emissions
- Emits equivalent to U.S. EPA Tier 2
- Emits equivalent to U.S. EPA Tier 2
Industrial
2206D-E13TA
- Maximum Power
- 536 hp
- 400 kW
- Maximum Torque
- 1735 lb-ft @ 1400 rpm
- 2353 Nm @ 1400 rpm
- Emissions
- China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA, U.S. EPA Tier 3
- China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA, U.S. EPA Tier 3
Industrial
2406J-E13TA
- Maximum Power
- 577 hp
- 430 kW
- Maximum Torque
- 1943 lb-ft @ 1400 rpm
- 2634 Nm @ 1400 rpm
- Emissions
- EU Stage V, U.S. EPA Tier 4 Final, Japan 2014, Korea tier 4 Final
- EU Stage V, U.S. EPA Tier 4 Final, Japan 2014, Korea tier 4 Final
Use the comparison tool to compare detailed specs of Perkins and competitor models.
Compare All Models
