404EA-22T

Industrial Diesel Engines 404EA-22T

Key Specs

Maximum Power
48.8 hp
36.4 kW
Maximum Torque
140 lb-ft @ 1700 rpm
190 Nm @ 1700 rpm
Emissions
China Nonroad IV
China Nonroad IV

Tools And Expert Help At Every Turn

Overview

The 404EA-22T is an indirect injection industrial diesel engine meeting China Nonroad IV without the need for electronic control, aftertreatment or exhaust gas recirculation. Available as turbocharged for improved low speed torque, we also offer a range of factory configurable options to minimise the cost of machine development and of manufacturing if equiped with e-controller.

Media Gallery

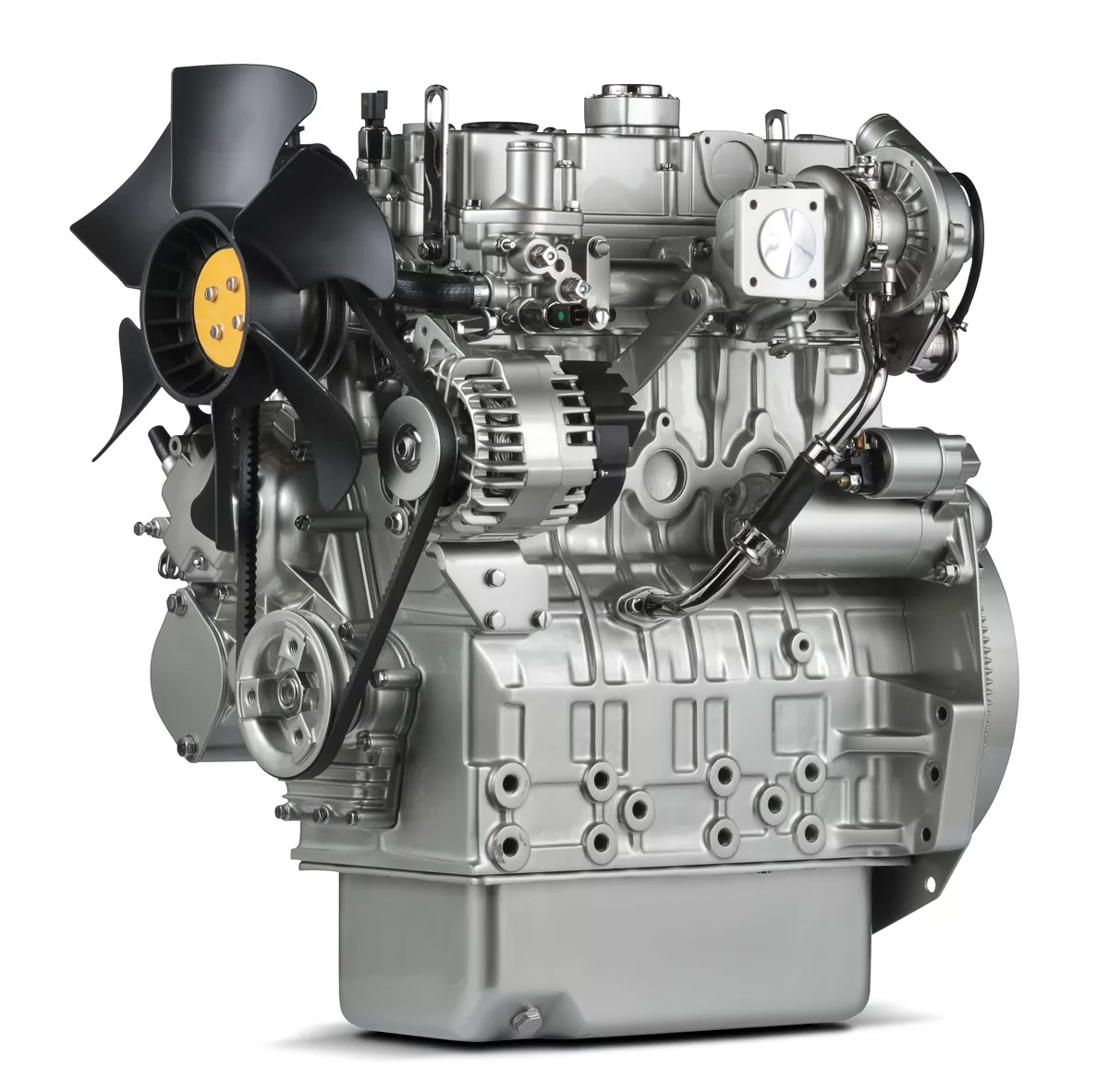

404EA-22T Industrial Diesel Engine

Features At A Glance

Perkins

Dependable power

The Perkins 400 Series has been proven to deliver durable power. Manufactured in highly automated, state-of-the-art production facilities, a wide range of customisation is available while preserving high quality levels.
Perkins

Tailored for your machine

The 404EA-22T is one of the four engine options available from Perkins at 36.4kW, enabling OEMs to balance different installation, operating and commercial requirements. These models are particularly suited to machines where power from a small package size is key, while the turbocharged variant also delivers improved altitude performance.
Perkins

Quiet in service

The stiff block and indirect injection system make this a quiet engine, minimising operator fatigue and saving costs for OEMs in sound attenuation measures.
Specifications Standard Equipment

Product Specifications for 404EA-22T

Download Print
Maximum Power 48.8 hp 36.4 kW
Maximum Torque 140 lb-ft @ 1700 rpm 190 Nm @ 1700 rpm
Rated Speed 2500 rpm 2500 rpm
Emissions China Nonroad IV China Nonroad IV
Number of Cylinders 4 inline 4 inline
Cycle 4 stroke 4 stroke
Bore 3.3 in 84 mm
Stroke 3.9 in 100 mm
Displacement 135 in³ 2.2 l
Compression Ratio 23.3:1 23.3:1
Aspiration Turbocharged Turbocharged
Combustion System Indirect injection Indirect injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment - -
Cooling System Liquid Liquid
Total Lubricating Oil Capacity 2.8 gal (US) 10.6 l
Total Coolant Capacity 0.95 gal (US) 3.6 l
Length 26.1 in 662 mm
Width 19.3 in 489 mm
Height 27.5 in 698 mm
Dry Weight 454 lb 206 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

404EA-22T Standard Equipment

Print

Cooling System

  • High and low cooling fan positions
  • Coolant temperature switch

Electrical and Electronics

  • Alternator 12V, 40, 65 and 85 Amp
  • Starter motor 12V, 2.0 kW
  • Electronic Shut Off Solenoid (ESOS)
  • Glow plug starting aid

Flywheel and Flywheel Housing

  • Flywheel housing SAE 4
  • Flywheel SAE 7 1/2 and SAE 8/10

Fuel System

  • Fuel injection pump
  • Spin-on fuel filter

General

  • Gradeability 35° continuous

Oil System

  • Lubricating oil pressure switch
  • Spin-on lubricating oil filter
  • Dipstick options available

Power Take-Off (PTO)

  • SAE A PTO
