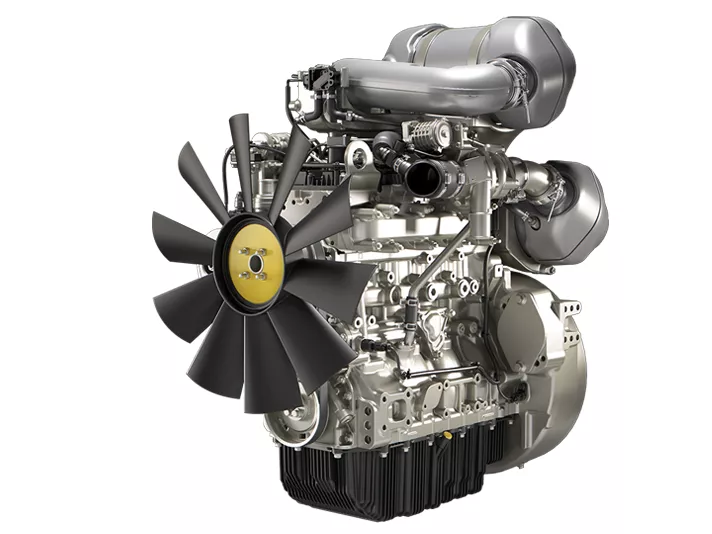

904J-E36TA

Industrial Diesel Engines 904J-E36TA

Key Specs

Maximum Power
142 hp
106 kW
Maximum Torque
417 lb-ft @ 1500 rpm
566 Nm @ 1500 rpm
Emissions
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014

Tools And Expert Help At Every Turn

Overview

The Perkins® 904 engines offer a compact power solution for off-highway applications in construction, agriculture and industrial. These 4 cylinder engines provide excellent performance in power, peak and low speed torque, fuel consumption and transient response.

There are a range of installation options to enable OEMs to minimise the size of the engine bay of their machines.

Media Gallery

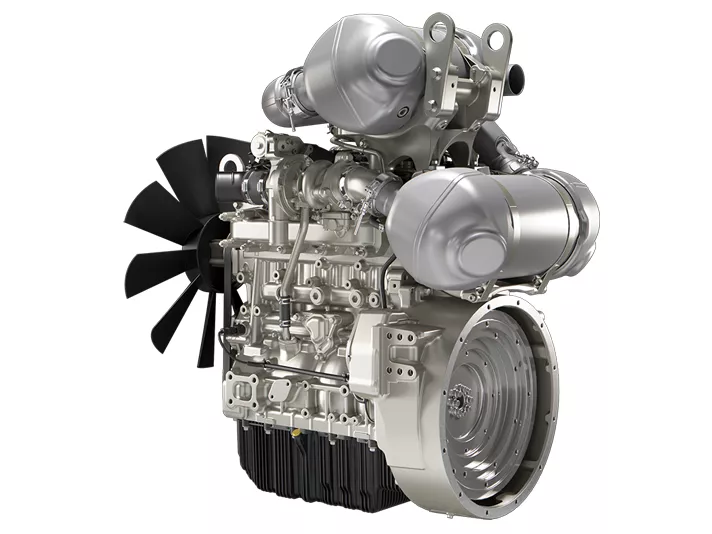

904J-E36TA Industrial Diesel Engine
904J-E36TA Industrial Diesel Engine
904J-E36TA Industrial Diesel Engine

Features At A Glance

Displaying 1-6 of 4

Perkins

Dependable power

These engines have been designed using predictive engineering methods, with extensive field validation to ensure reliable power in the toughest conditions. Worldwide facilities employ efficient processes, tested and validated components, and stringent quality controls wherever your engines are manufactured.
Perkins

Lifetime of low cost

 Fuel consumption is optimised to match the operating cycles of a wide range of off-highway applications. One-year warranties for constant speed engines and two-year warranties for variable speed models, as standard. For further peace of mind, there is also the option to extend the warranty period through Perkins® Platinum Protection.
Perkins

Industry leading flexibility

A modular engine concept allows OEMs to design one engine installation for different regions. This reduces cost and development time for cooling pack, mounting, hydraulic and control interfaces.

Perkins

Local support, global coverage

A range of flexible solutions available to help provide appropriate support to an OEM’s network or directly to the machine customer. The Perkins logistics operation have the ablility to dispatch parts from stock, reaching the customer within 24 hours helping to maximise the productive life of your engine.

Product Specifications for 904J-E36TA

Download Print
Maximum Power 142 hp 106 kW
Maximum Torque 417 lb-ft @ 1500 rpm 566 Nm @ 1500 rpm
Rated Speed 2000-2400 rpm 2000-2400 rpm
Minimum Power 74 hp 55 kW
Emissions EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 EU Stage V, U.S. EPA Tier 4 Final, Japan 2014
Number of Cylinders 4 4
Displacement 220.9 in³ 3.6 l
Aspiration Turbocharged aftercooled (TA) Turbocharged aftercooled (TA)
Bore 3.86 in 98 mm
Stroke 4.72 in 120 mm
Combustion System Direct injection Direct injection
Compression Ratio 17.0:1 17.0:1
Aftertreatment DOC+DPF or DOC+DPF+SCR DOC+DPF or DOC+DPF+SCR
Total Lubricating Oil Capacity 3.06 gal (US) 11.6 l
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Cooling System Liquid Liquid
Length 26.3 in 667 mm
Width 22.2 in 564 mm
Height 31 in 787 mm
Dry Weight 840 lb 381 kg
Wet Weight 928 lb 421 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

See how 904J-E36TA compares against frequently compared products.

Industrial
Selected
904J-E36TA
904J-E36TA
Maximum Power
142 hp
106 kW
Maximum Torque
417 lb-ft @ 1500 rpm
566 Nm @ 1500 rpm
Emissions
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014
Industrial
904D-E28T
904D-E28T
Maximum Power
74 hp
55 kW
Maximum Torque
221 lb-ft @ 1600 rpm
300 Nm @ 1600 rpm
Emissions
UN ECE R96 Stage IIIA, Brazil MAR-1
UN ECE R96 Stage IIIA, Brazil MAR-1
View Details
Industrial
904J-E36TTA
904J-E36TTA
Maximum Power
173 hp
129 kW
Maximum Torque
546 lb-ft @ 1500 rpm
740 Nm @ 1500 rpm
Emissions
EU Stage V, U.S. EPA Tier 4 Final
EU Stage V, U.S. EPA Tier 4 Final
View Details

Use the comparison tool to compare detailed specs of Perkins and competitor models.

Compare All Models

Check out current offers for the 904J-E36TA

View More Offers
