1103D-33

Industrial Diesel Engines 1103D-33

Key Specs

Maximum Power
49.5 hp
36.9 kW
Maximum Torque
139.3 lb-ft @ 1400 rpm
189 Nm @ 1400 rpm
Emissions
UN ECE R96 Stage IIIA
UN ECE R96 Stage IIIA

Tools And Expert Help At Every Turn

Overview

The 1103 range provides cost effective power solutions and is proving particularly popular with operators of tractors. The engines meet EU Stage II/Stage IIIA and U.S. EPA Tier 2/Tier 3 equivalent emissions standards. The compact 3.3 litre engines have a cylinder head and block design that gives mastery of air control, maintains bore roundness under pressure, and reduces combustion and mechanical noise. High quality oil and fuel filtration deliver improved reliability and durability.

The 1103D engines – which deliver 36.9-58 kW (49.5-77.8 hp) at 2200 rpm – are particularly suitable for tractors and compact industrial applications, and have features and benefits that really meet your industrial power applications needs.

Media Gallery

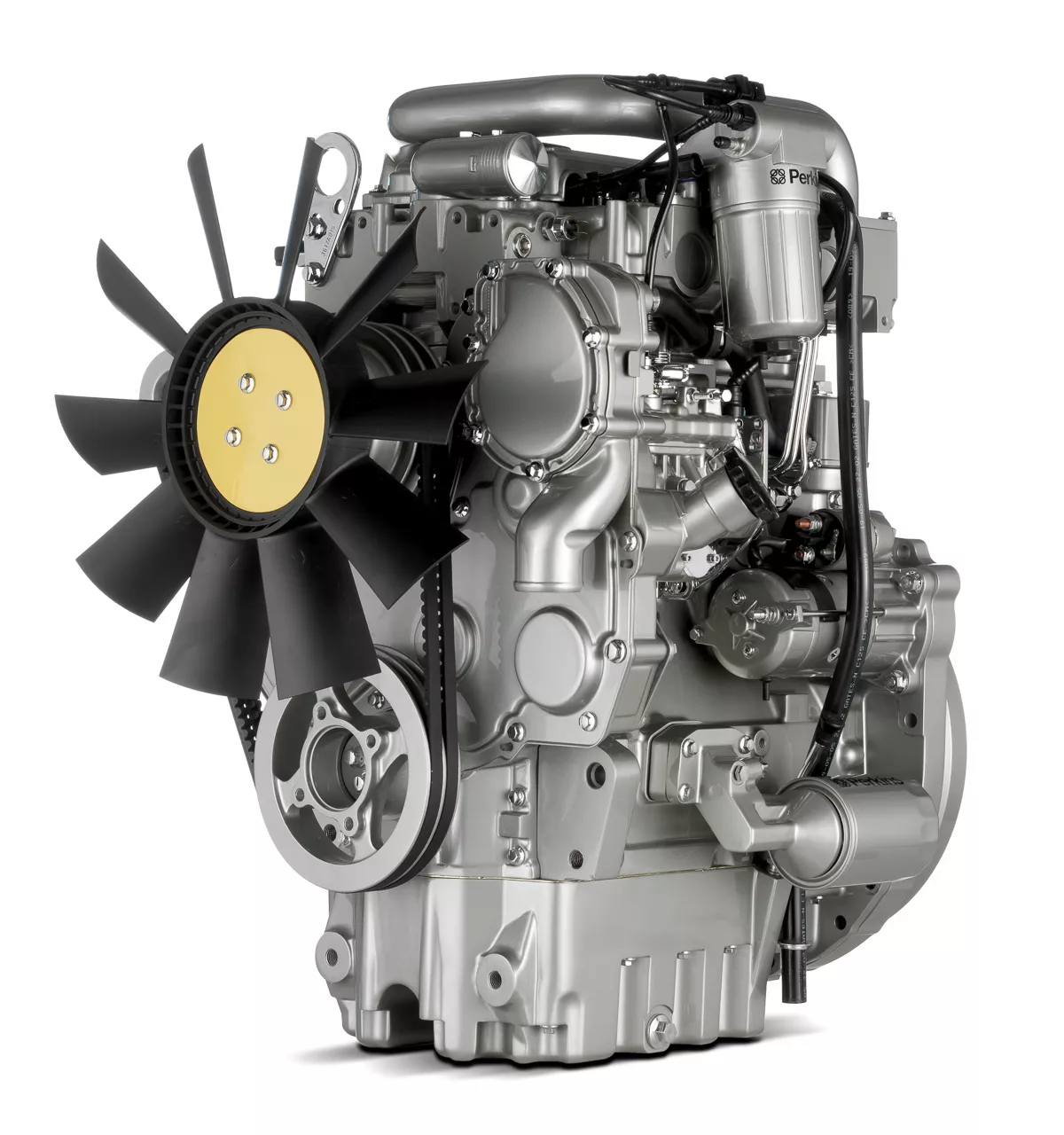

1103D-33 Industrial Diesel Engine

Features At A Glance

Displaying 1-6 of 6

Perkins

Compact package size

The compact dimensions of the 3 cylinder engine with stressed block options, meet the requirements for agricultural and compact industrial applications. Common hook-up points across the 1100 Series range enable easier upgrade to higher emissions Stages/Tiers and larger 4 and 6 cylinder engines.
Perkins

Designed as a 3 cylinder engine

The 1103 range includes a cylinder block design that ensures bore roundness is maintained under pressure, as well as giving lower combustion and mechanical noise.
Perkins

Ease of maintenance

The engines have mechanical fuel injection for ease of maintenance with 500 hour service intervals. And single side service components, for ease of end user servicing.
Perkins

Expertise whenever you need it

With our network of distributors, you will find all the advice you need to ensure you get the right engine. By building strong relationships with you, we make sure you have access to the full power of the Perkins brand and expertise. Our fully trained experts deliver total service support 24/7, 365 days of the year. Whether you need technical information, parts identification or ordering, our distribution network is there to make sure your Perkins engine keeps on running at peak performance.
Perkins

Oil and fuel filtration

The high quality oil and fuel filtration on our 1103 range produces an engine that is reliable and durable. Ecoplus fuel filtration is available to boost its clean running qualities. Capable of running on a wide range of global fuels including biodiesel.
Perkins

Power and performance

With a maximum torque at 1400 rpm and an excellent back-up, the 1103 is an ideal choice for agricultural tractors. Models in the range are either naturally aspirated or turbocharged to give you the extra power you require.
Specifications Standard Equipment

Product Specifications for 1103D-33

Download Print
Maximum Power 49.5 hp 36.9 kW
Maximum Torque 139.3 lb-ft @ 1400 rpm 189 Nm @ 1400 rpm
Rated Speed 2200 rpm 2200 rpm
Minimum Power 49.5 hp 36.9 kW
Emissions UN ECE R96 Stage IIIA UN ECE R96 Stage IIIA
Number of Cylinders 3 inline 3 inline
Cycle 4 stroke 4 stroke
Bore 4.1 in 105 mm
Stroke 5 in 127 mm
Displacement 202 in³ 3.3 l
Compression Ratio 19.25:1 19.25:1
Aspiration Naturally aspirated Naturally aspirated
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment - -
Cooling System Liquid Liquid
Length 21.5 in 546 mm
Width 22.5 in 571 mm
Height 32.5 in 826 mm
Dry Weight 582 lb 264 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

1103D-33 Standard Equipment

Print

Air System

  • Cast iron exhaust manifold
  • Integral inlet manifold

Electrical and Electronics

  • 12 volt alternator
  • 12 volt starter motor
  • Engine shut-off solenoid

Cooling System

  • Coolant temperature switch
  • Cooling fan
  • Water outlet

Fuel System

  • Ecoplus fuel filter

General

  • Cast iron engine block
  • Choice of filler positions
  • Glow plug starting aid

Oil System

  • Dipstick (left or right position)
  • Lubricating oil pressure switch
  • Lubricating oil sump for 4WD tractors
  • Standard oil filters

Power Take-Off (PTO)

  • Provision for PTOs
