904J-E36TTA

Industrial Diesel Engines 904J-E36TTA

Key Specs

Maximum Power
173 hp
129 kW
Maximum Torque
546 lb-ft @ 1500 rpm
740 Nm @ 1500 rpm
Emissions
EU Stage V, U.S. EPA Tier 4 Final
EU Stage V, U.S. EPA Tier 4 Final

Tools And Expert Help At Every Turn

Overview

The Perkins® 904J-E36TTA delivers big-engine performance in a compact footprint, offering up to 129 kW of power and 740 Nm of torque. Built for global emissions compliance, it ensures seamless integration with simple, engine-mounted aftertreatment. With extended service intervals, fuel flexibility, and proven durability, this engine maximises power, efficiency, and reliability for diverse machine applications.

Media Gallery

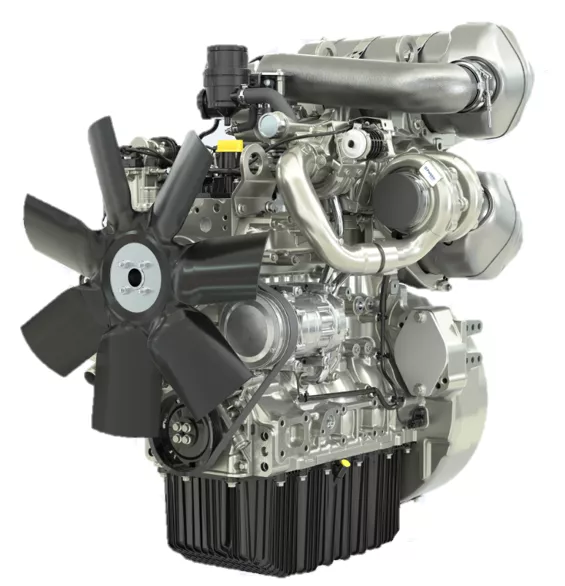

904J-E36TTA Industrial Diesel Engine

Features At A Glance

Displaying 1-6 of 4

Perkins

Big advantage in a small package

Compact design delivers big-engine performance without sacrificing space. Ideal for tight installations, it offers flexibility across machine platforms while reducing weight and complexity giving you more power in a smaller footprint.
Perkins

Maximised power and efficiency

Up to 129 kW (173 hp) of power and 740 Nm (546 lb ft) of torque ensures superior output with optimised fuel consumption. Engine mounted aftertreatment simplifies customer machine installations, delivering high performance and efficiency for demanding applications.
Perkins

Exceptional customer value

Up to 1,000 hour service intervals cut downtime and maintenance costs. Customisable options and seamless integration across platforms provide unmatched versatility and long term savings.

Perkins

Reliable platform

Proven 904 Series durability ensures dependable operation in extreme cold and high altitudes. Compatible with B20 biodiesel and HVO fuels* for sustainable performance without compromise.

Product Specifications for 904J-E36TTA

Download Print
Maximum Power 173 hp 129 kW
Maximum Torque 546 lb-ft @ 1500 rpm 740 Nm @ 1500 rpm
Rated Speed 2200 rpm 2200 rpm
Minimum Power 173 hp 129 kW
Emissions EU Stage V, U.S. EPA Tier 4 Final EU Stage V, U.S. EPA Tier 4 Final
Number of Cylinders 4 4
Displacement 221 in³ 3.6 l
Aspiration Twin turbocharged aftercooled (TTA) Twin turbocharged aftercooled (TTA)
Bore 3.9 in 98 mm
Stroke 4.7 in 120 mm
Combustion System Direct injection Direct injection
Compression Ratio 17.0:1 17.0:1
Aftertreatment DOC+DPF+SCR DOC+DPF+SCR
Total Lubricating Oil Capacity 4.2 gal (US) 16 l
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Cooling System Liquid Liquid
Length 33.5 in 850 mm
Width 26.8 in 680 mm
Height 41.8 in 1060 mm
Dry Weight 882 lb 400 kg
Wet Weight 937 lb 425 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options
