404J-E22TA

Industrial Open Power Units 404J-E22TA

Key Specs

Maximum Power
74 hp
55 kW
Maximum Torque
199 lb-ft @ 1600 rpm
270 Nm @ 1600 rpm
Emissions
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)

Tools And Expert Help At Every Turn

Overview

The Perkins® 404J-E22TA IOPU provides a complete plug-and-play power solution to meet EU Stage V, U.S. EPA Tier 4 Final and Japan 2014 (Tier 4 Final) emission standards. With a wide choice of options, engine configurations and robust technologies, you can integrate the 404J-E22TA IOPU into equipment with minimal re-engineering that can help save valuable costs.

Media Gallery

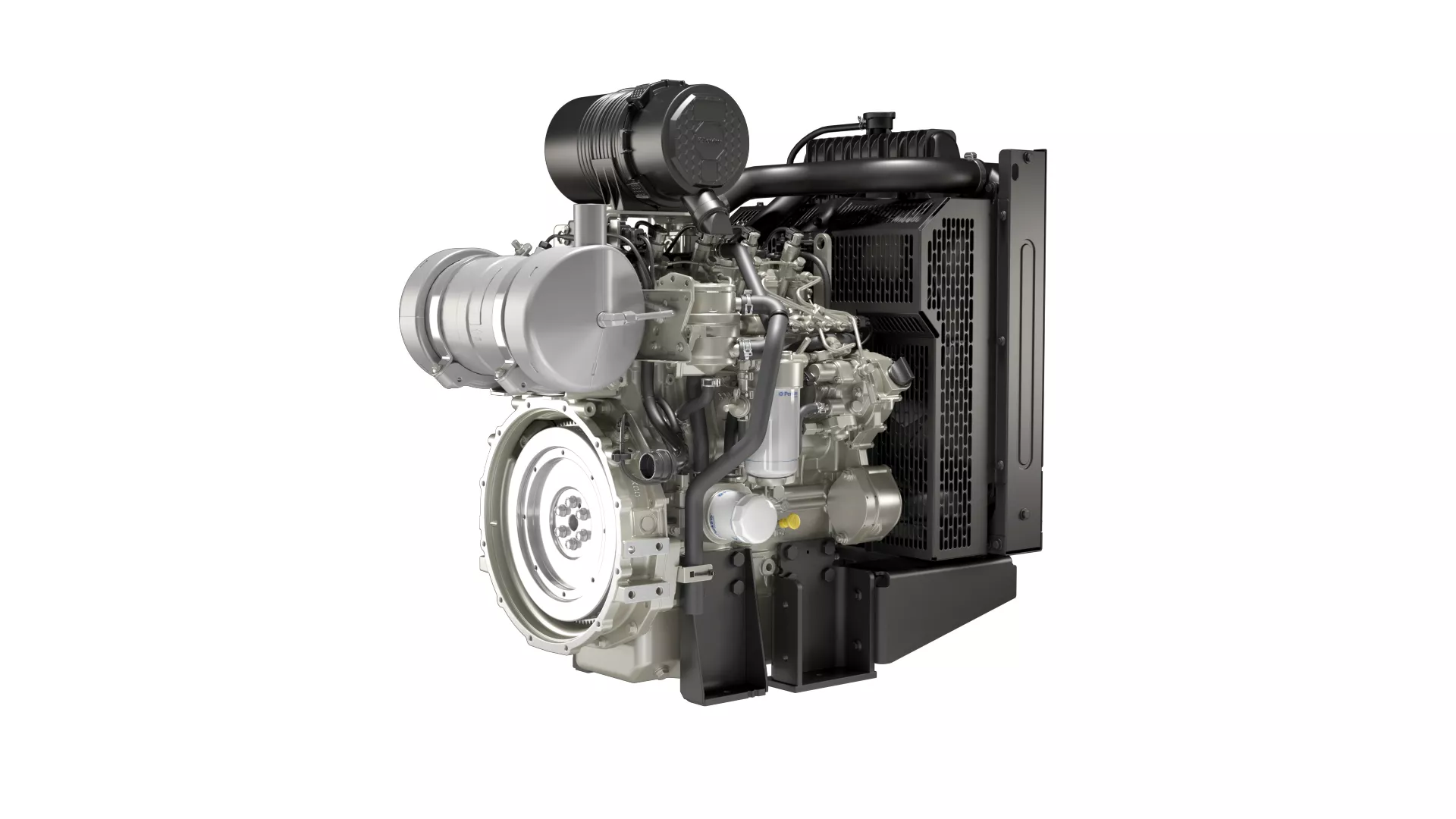

404J-E22TA Industrial Open Power Unit

Features At A Glance

Displaying 1-6 of 4

Perkins

Low cost installation

Perkins IOPU is available with aftertreatment and air filter ready mounted from factory.

Additionally, multiple installation options provide an easy installation for OEM’s and minimise the IOPU total size to enable a low cost installation into your machine.
Perkins

Powerful performance

Broad range of options for agricultural, materials handling, construction, mining, aircraft ground support, and other industrial applications.

Improved power by 10 percent and torque by 30 percent over the previous generation Perkins engine.

Fuel efficiency optimised to match operating cycles of a wide range of non-road equipment encourages standardisation across numerous applications or OEM variants to help reduce your variety.
Perkins

Straightforward maintenance

Oil service is only needed every 500 hours.

Service points are located on the cold side of the engine for a safer service.

Factory fitted Diesel Particulate Filter is made for the life of your engine and no workcycle interruption for regeneration.
Perkins

Local support, global coverage

Perkins recognise that the customer relationship is important to machine manufacturers and we can offer a range of flexible solutions to help provide appropriate support, either to the OEM's network or directly to the machine customer.

With highly trained Perkins distributors in thousands of communities in over 180 countries, you are never far away from expert product knowledge, genuine parts and a range of advanced diagnostic technology for keeping your engine in peak condition.

For more information please contact a Perkins distributor: http://distributorlocator.perkins.com
Specifications Standard Equipment

Product Specifications for 404J-E22TA

Download Print
Maximum Power 74 hp 55 kW
Maximum Torque 199 lb-ft @ 1600 rpm 270 Nm @ 1600 rpm
Rated Speed 2800 rpm 2800 rpm
Emissions EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final) EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
Number of Cylinders 4 inline 4 inline
Cycle 4 stroke 4 stroke
Bore 3.3 in 84 mm
Stroke 3.9 in 100 mm
Displacement 135 in³ 2.2 l
Compression Ratio 17.0:1 17.0:1
Aspiration Turbocharged Aftercooled Turbocharged Aftercooled
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment DOC+DPF DOC+DPF
Cooling System Liquid Liquid
Length 39.1 in 992 mm
Width 23.7 in 602 mm
Height 38.8 in 985 mm
Dry Weight 721 lb 327 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

404J-E22TA Standard Equipment

Print

Air System

  • Turbocharged

General

  • Multiple engine rating options
  • Cast iron engine block
  • Block heater provision
  • An extensive range of options are available, enabling you to prepare a specification matched precisely to your needs.

Power Take-Off (PTO)

  • SAE A PTO drive

Flywheel and Flywheel Housing

  • Flywheel and flywheel housing options

Electrical and Electronics

  • Electronic control module – chassis mounted
  • Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
  • The wiring harness, connectors and sensors are waterproof and designed to withstand harsh off-highway environments
  • Glow plug starting aid
  • Starter motor 12 volts
  • Alternator 12 volts, 85 amp

Fuel System

  • Electronic 2000 bar common rail fuel system
  • Fuel filter with water detector

See how 404J-E22TA compares against frequently compared products.

Industrial
Selected
404J-E22TA
404J-E22TA
Maximum Power
74 hp
55 kW
Maximum Torque
199 lb-ft @ 1600 rpm
270 Nm @ 1600 rpm
Emissions
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
Industrial
404J-E22T
404J-E22T
Maximum Power
60 hp
45 kW
Maximum Torque
164 lb-ft @ 1600 rpm
222 Nm @ 1600 rpm
Emissions
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
View Details
Industrial
904J-E28T
904J-E28T
Maximum Power
74 hp
55 kW
Maximum Torque
221 lb-ft @ 1600 rpm
300 Nm @ 1600 rpm
Emissions
EU Stage V/U.S. EPA Tier 4 Final/ Japan 2014 (Tier 4 Final)
EU Stage V/U.S. EPA Tier 4 Final/ Japan 2014 (Tier 4 Final)
View Details
