Key Specs

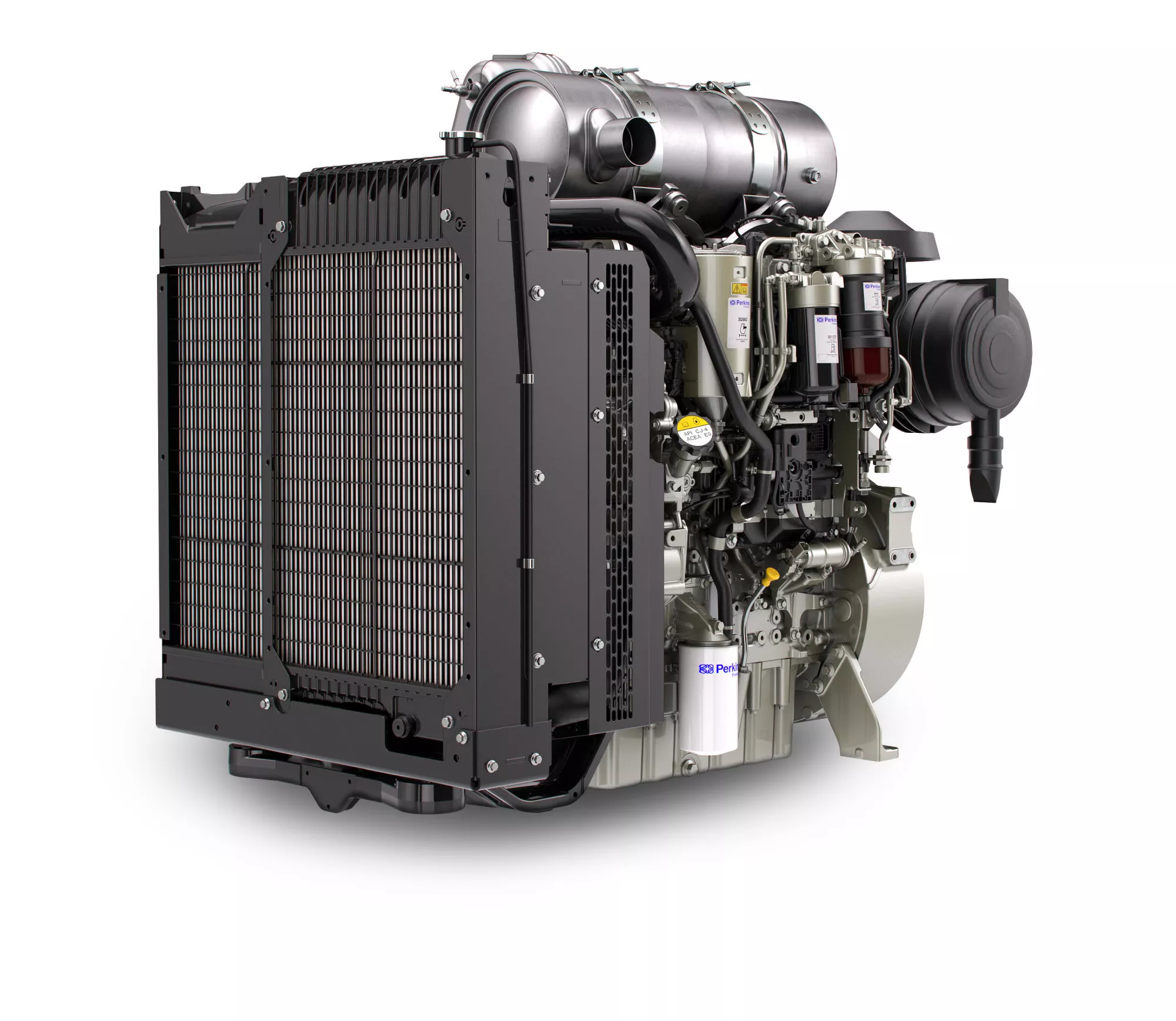

The Perkins® 1204J, the 4 cylinder option for the 1200 Series, gives you a complete power solution that meets the latest EU Stage V/U.S. EPA Tier 4 Final emission standards. The choice of options, engine configurations and robust technology allows you to integrate the 1204 range into your equipment with minimum re-engineering.
The innovative, compact and flexible design of the Perkins 1200 Series means it can be found in more than 800 different models of equipment.
Displaying 1-6 of 4
Like you, we believe there is no need for a trade-off between meeting emission standards and delivering on performance. The 1200 Series tackles the emissions challenge head-on and gives you improved productivity levels and fuel consumption compared to the previous generation Stage IIIB/Tier 4 Interim engines.
| Maximum Power | 190 hp 139.8 kW |
| Maximum Torque | 601 lb-ft @ 1400 rpm 815 Nm @ 1400 rpm |
| Rated Speed | 2000-2200 rpm 2000-2200 rpm |
| Minimum Power | 159 hp 117 kW |
| Emissions | EU Stage V, U.S. EPA Tier 4 Final EU Stage V, U.S. EPA Tier 4 Final |
| Number of Cylinders | 4 inline 4 inline |
| Cycle | 4 stroke 4 stroke |
| Bore | 4.1 in 105 mm |
| Stroke | 5 in 127 mm |
| Displacement | 268.5 in³ 4.4 l |
| Compression Ratio | 16.5:1 16.5:1 |
| Aspiration | Series turbocharged aftercooled Series turbocharged aftercooled |
| Combustion System | Direct injection Direct injection |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Aftertreatment | DOC+DPF+SCR DOC+DPF+SCR |
| Cooling System | Liquid Liquid |
| Length | 57.1 in 1450 mm |
| Width | 34.2 in 869 mm |
| Height | 52.9 in 1344 mm |
| Dry Weight | 1559 lb 707 kg |
| Length | 26.8 in 682 mm |
| Width | 24 in 609 mm |
| Height | 17.8 in 452 mm |
| Weight | 143 lb 65 kg |
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
