1104A-44

Industrial Diesel Engines 1104A-44

Key Specs

Maximum Power
85 hp
63.5 kW
Maximum Torque
216 lb-ft @ 1200 rpm
293 Nm @ 1200 rpm
Emissions
Non-Certified
Non-Certified

Tools And Expert Help At Every Turn

Overview

Whatever your application, there's an 1104 engine for you. Part of the Perkins 1100 Series, the range's 4 cylinder, 4.4 litre engines are smooth and quiet in operation. Designed to meet EU Stage II/IIIA and U.S. EPA Tier 2/Tier 3 equivalent emissions standards, the 1104 range offer a choice of mechanical or electronically controlled common rail engines. Electronically controlled engines deliver the right fuel injection for the load applied to the engine. Common front and rear ends, connection points and components across the range, making it easy to install a different 1100 Series engine in your application.

Media Gallery

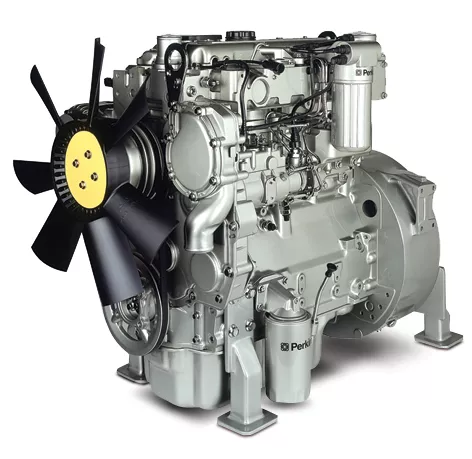

1104A-44 Industrial Diesel Engine

Features At A Glance

Displaying 1-6 of 5

Perkins

Designed for lesser regulated territories

The 1100 Series range of engines have been specifically designed for use in territories with Stage II/IIIA and Tier 2/3 equivalent emissions standards, using the best technologies to ensure a reliable and easy to maintain machine. With a choice of naturally aspirated, turbocharged and turbocharged aftercooled it offers the best combination of power delivery and response.
Perkins

Ease of maintenance

All of the engines have 500 hour service intervals. And single side service components, for ease of end user servicing.
Perkins

Easy to upgrade

Common front and rear ends, connection points and components across the range mean that you can easily install a different 1100 Series engine in your application.
Perkins

Expertise whenever you need it

With our network of distributors, you will find all the advice you need to ensure you get the right engine. By building strong relationships with you, we make sure you have access to the full power of the Perkins brand and expertise. Our fully trained experts deliver total service support 24/7, 365 days of the year. Whether you need technical information, parts identification or ordering, our distribution network is there to make sure your Perkins engine keeps on running at peak performance.
Perkins

Oil and fuel filtration

The high quality oil and fuel filtration on our 1100 Series range produces an engine that is reliable and durable. Ecoplus fuel filtration is available to boost its clean running qualities and the engine is capable of running on a wide range of global fuels including biodiesel.
Specifications Standard Equipment

Product Specifications for 1104A-44

Download Print
Maximum Power 85 hp 63.5 kW
Maximum Torque 216 lb-ft @ 1200 rpm 293 Nm @ 1200 rpm
Rated Speed 2200 rpm 2200 rpm
Minimum Power 67 hp 50 kW
Emissions Non-Certified Non-Certified
Number of Cylinders 4 inline 4 inline
Cycle 4 stroke 4 stroke
Bore 4.1 in 105 mm
Stroke 5 in 127 mm
Displacement 269 in³ 4.4 l
Compression Ratio 19.3:1 19.3:1
Aspiration Naturally aspirated Naturally aspirated
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment - -
Cooling System Liquid Liquid
Length 30.2 in 768 mm
Width 22 in 558 mm
Height 31.2 in 795 mm
Dry Weight 787 lb 357 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

1104A-44 Standard Equipment

Print

Air System

  • Cast iron exhaust manifold – centre side outlet
  • Integral inlet manifold

Electrical and Electronics

  • 12 volt alternator
  • 12 volt starter motor

Cooling System

  • Cooling fan
  • Gear-driven coolant pump
  • Water outlet

General

  • Cast iron engine block
  • Balancer or non-balancer
  • Glow plug starting aid

Oil System

  • Lubricating oil sump
  • Dipstick (left or right position)

Power Take-Off (PTO)

  • Provision for PTOs

See how 1104A-44 compares against frequently compared products.

Industrial
Selected
1104A-44
1104A-44
Maximum Power
85 hp
63.5 kW
Maximum Torque
216 lb-ft @ 1200 rpm
293 Nm @ 1200 rpm
Emissions
Non-Certified
Non-Certified
Industrial
1104C-44TA
1104C-44TA
Maximum Power
130.1 hp
97 kW
Maximum Torque
369 lb-ft @ 1400 rpm
500 Nm @ 1400 rpm
Emissions
EU Stage II/U.S. EPA Tier 2 equivalent
EU Stage II/U.S. EPA Tier 2 equivalent
View Details
Industrial
1104A-44T
1104A-44T
Maximum Power
108 hp
80.5 kW
Maximum Torque
298 lb-ft @ 1400 rpm
404 Nm @ 1400 rpm
Emissions
Non-Certified
Non-Certified
View Details

Use the comparison tool to compare detailed specs of Perkins and competitor models.

Compare All Models
