904D-E36TA

Industrial Diesel Engines 904D-E36TA

Key Specs

Maximum Power
121 hp
90 kW
Maximum Torque
369 lb-ft @ 1500 rpm
500 Nm @ 1500 rpm
Emissions
UN ECE R96 Stage IIIA, Brazil MAR-1
UN ECE R96 Stage IIIA, Brazil MAR-1

Tools And Expert Help At Every Turn

Overview

The 904 Series, 3.6 litre offers a compact power solution for off-highway machines in construction, agriculture and industrial.The technology has been chosen not only to meet emissions standards but also to provide excellent performance in power, peak and low speed torque, fuel consumption and transient response.Reliability and easy service access are integral to the design of the 904. It is available with a range of installation options to enable OEMs to minimise the size of the engine bay of their machines.

Media Gallery

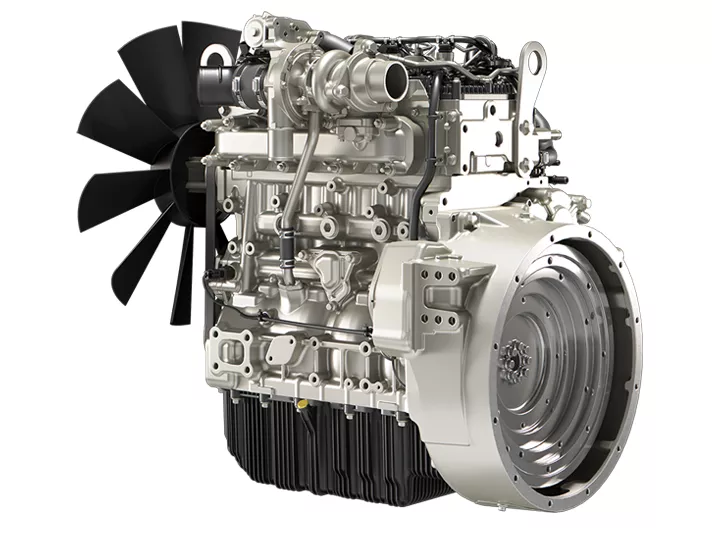

904D-E36TA Industrial Diesel Engine

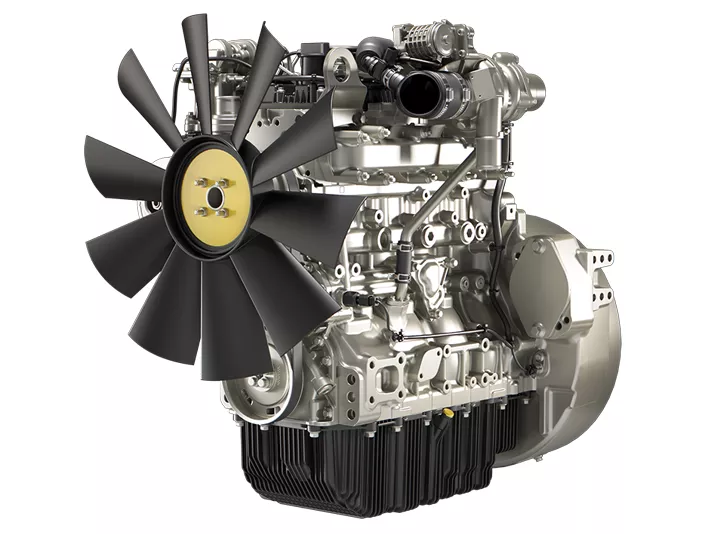

904D-E36TA Industrial Diesel Engine

Features At A Glance

Perkins

A lifetime of low cost

The fuel consumption is optimised to match the operating cycles of a wide range of off-highway machines. No additional fluids or additives are required which lowers operating costs and operator training.



Hydraulic tappets, multi-vee belts and long service intervals enable low cost maintenance
Perkins

Dependable power

The engine has been designed using the latest predictive engineering methods, combined with an extensive field validation program to ensure reliable power in the toughest off-highway conditions.



Quality, reliability and consistency are assured. Our facilities worldwide employ the same efficient processes, the same tested and validated components, and the same stringent quality controls wherever your engines are manufactured.
Perkins

Industry leading flexibility

We have designed the engine using modular components allowing the engine configuration to be altered to meet different emissions standards whilst keeping the same core.

This allows OEMs to design one engine installation for different global regions, reducing cost and development time for the cooling pack, mounting, hydraulics and control interfaces.
Specifications Standard Equipment

Product Specifications for 904D-E36TA

Download Print
Maximum Power 121 hp 90 kW
Maximum Torque 369 lb-ft @ 1500 rpm 500 Nm @ 1500 rpm
Rated Speed 2000 - 2400 rpm 2000 - 2400 rpm
Minimum Power 74 hp 55 kW
Emissions UN ECE R96 Stage IIIA, Brazil MAR-1 UN ECE R96 Stage IIIA, Brazil MAR-1
Number of Cylinders 4 inline 4 inline
Cycle 4 stroke 4 stroke
Bore 3.9 in 98 mm
Stroke 4.7 in 120 mm
Displacement 220 in³ 3.6 l
Compression Ratio 17.0:1 17.0:1
Aspiration Turbocharged aftercooled Turbocharged aftercooled
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment - -
Cooling System Liquid Liquid
Length 26.3 in 667 mm
Width 22.2 in 564 mm
Height 31 in 787 mm
Dry Weight 840 lb 381 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

904D-E36TA Standard Equipment

Print

Electrical and Electronics

  • 12 or 24V systems
  • Data interface via CANbus J1939
  • Full electronic control
  • Glow plugs for best cold starting with minimum battery impact
  • High power alternator and starter motor options
  • Sensors and robust wiring harness included

Flywheel and Flywheel Housing

  • SAE3 or SAE4 flywheel housing
  • Wide choice of interfaces for common transmissions and hydraulic pumps

Fuel System

  • Electronic high pressure common rail
  • Fuel filter - chassis mounted
  • Water sensor included - early warning for operator

General

  • Cold-start capable with standard equipment to -20°C
  • Supplied painted or lacquered

Oil System

  • Oil filters. Mounting options available on either side of the engine
  • Dipsticks. Choice of position and length
  • Oil fillers. Multiple locations on engine to allow for choice of service access
  • High incline sump. 35° continuous in all directions. Suitable for machines that are used on steep slopes

Power Take-Off (PTO)

  • SAE-A and SAE-B interfaces available
