403J-E17T

Industrial Diesel Engines 403J-E17T

Key Specs

Maximum Power
48 hp
36 kW
Maximum Torque
122 lb-ft @ 1600 rpm
166 Nm @ 1600 rpm
Emissions
EU Stage V, U.S. EPA Tier 4 Final
EU Stage V, U.S. EPA Tier 4 Final

Tools And Expert Help At Every Turn

Overview

Perkins is an off-highway engine specialist with more than 85 years’ experience of designing, building and servicing industrial power solutions. We work in close partnership with over 800 OEMs including some of world’s best known machine brands.

With an extensive global presence and a commitment to collaboration, we are able to customise our aftermarket services to the needs of our OEM customers.

Media Gallery

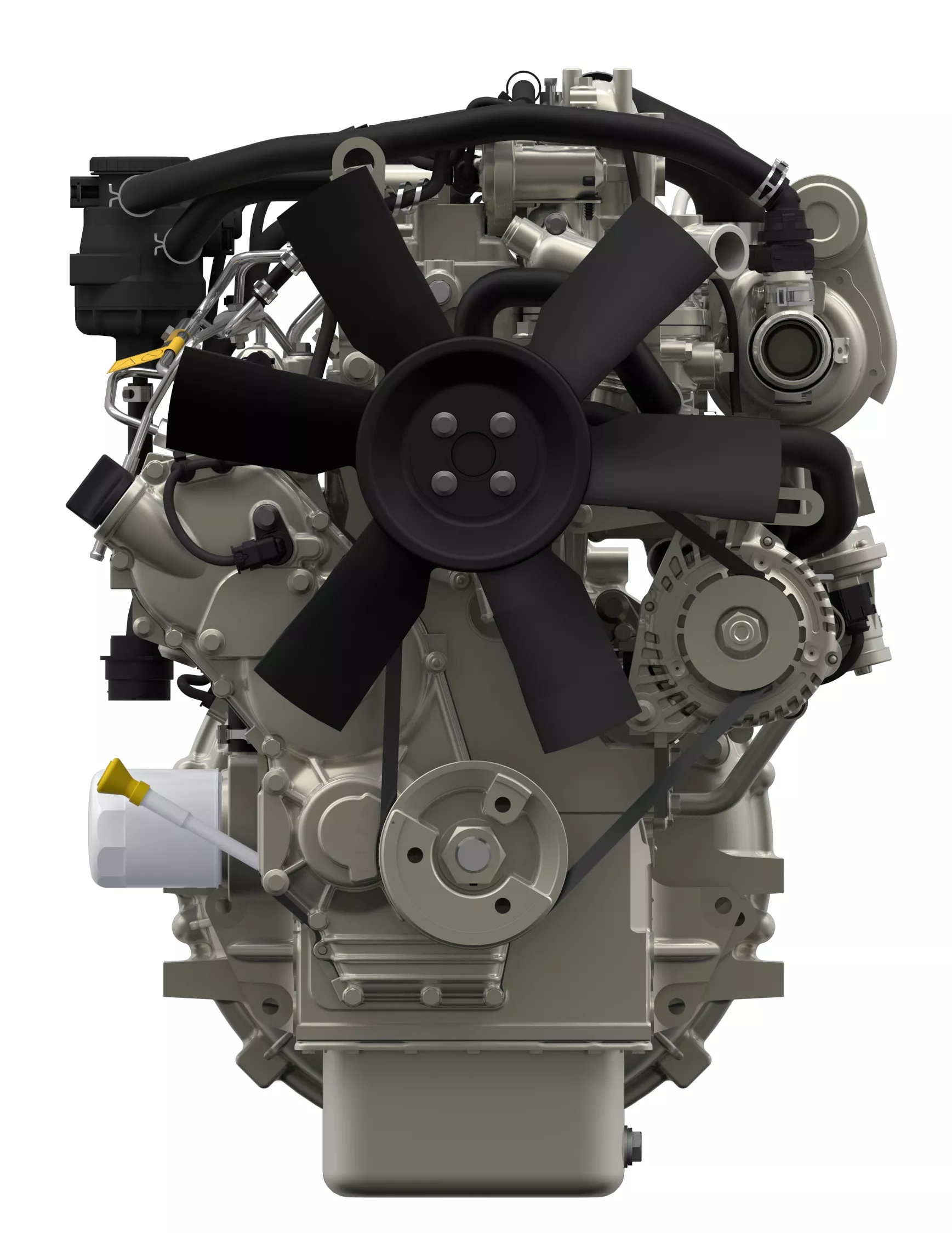

403J-E17T Industrial Diesel Engine

Features At A Glance

Perkins

A lifetime of low cost

Through appropriate use of technology, all 400 Series engines have been designed to be reliable and deliver a low cost of ownership in the variety of markets they service.
Perkins

Compact design

A compact turbocharged engine with a fully electronic fuel system offering you the ability to meeting the latest emissions standards.
Perkins

Performance and refinement

An impressive increase of 24 percent in power and 34 percent in torque available from the current product offering.

Delivering an impressive 166 Nm of torque, this engine enables users toeasily downsize.

Product Specifications for 403J-E17T

Download Print
Maximum Power 48 hp 36 kW
Maximum Torque 122 lb-ft @ 1600 rpm 166 Nm @ 1600 rpm
Rated Speed 2800 rpm 2800 rpm
Minimum Power 24.4 BHP 18.2 kW
Emissions EU Stage V, U.S. EPA Tier 4 Final EU Stage V, U.S. EPA Tier 4 Final
Number of Cylinders 3 inline 3 inline
Bore 3.3 in 84 mm
Stroke 3.9 in 100 mm
Displacement 103.74 in³ 1.7 l
Compression Ratio 17.0:1 17.0:1
Aspiration Turbocharged Turbocharged
Combustion System Direct Injection Direct Injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment DOC+DPF DOC+DPF
Length 28.1 in 713 mm
Width 21.1 in 536 mm
Height 28.4 in 722 mm
Dry Weight 419 lb 190 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

See how 403J-E17T compares against frequently compared products.

Industrial
Selected
403J-E17T
403J-E17T
Maximum Power
48 hp
36 kW
Maximum Torque
122 lb-ft @ 1600 rpm
166 Nm @ 1600 rpm
Emissions
EU Stage V, U.S. EPA Tier 4 Final
EU Stage V, U.S. EPA Tier 4 Final
Industrial
403J-17T
403J-17T
Maximum Power
24.6 hp
18.4 kW
Maximum Torque
69 lb-ft @ 1700 rpm
93.6 Nm @ 1700 rpm
Emissions
EU Stage V
EU Stage V
View Details
Industrial
404D-22
404D-22
Maximum Power
51 hp
38 kW
Maximum Torque
105.4 lb-ft @ 1800 rpm
143 Nm @ 1800 rpm
Emissions
UN ECE R96 Stage IIIA, Brazil MAR - 1
UN ECE R96 Stage IIIA, Brazil MAR - 1
View Details

Use the comparison tool to compare detailed specs of Perkins and competitor models.

Compare All Models
