1206EA-E70TA

Industrial Diesel Engines 1206EA-E70TA

Key Specs

Maximum Power
202 hp
151 kW
Maximum Torque
642 lb-ft @ 1400 rpm
870 Nm @ 1400 rpm
Emissions
China NR IV
China NR IV

Tools And Expert Help At Every Turn

Overview

The 6 cylinder option for the Perkins 1200 Series, the 1206 gives you a complete power solution that meets China NR IV emission standards. The choice of options, engine configurations and robust technology allows you to integrate the 1206 range into your equipment with minimum re-engineering.1206EA-E70TA INDUSTRIAL ENGINE7.0 litre129-151 kW (174-202 hp)China NR IV emission standards.

Media Gallery

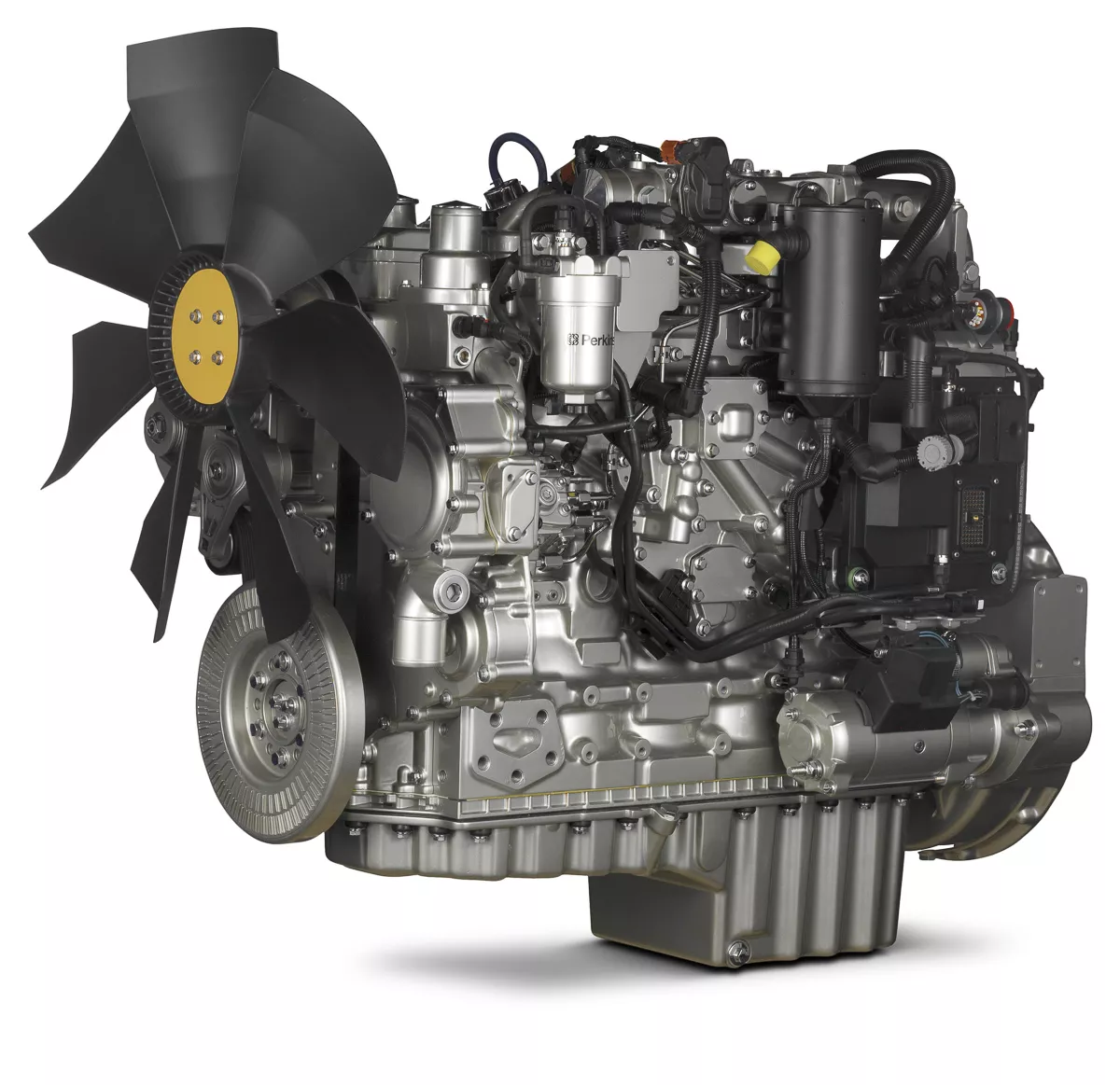

1206EA-E70TA Industrial Diesel Engine

Features At A Glance

Perkins

Outstanding performance

Like you, we believe there is no need for a trade-off between meeting emission standards and delivering on performance. The 1200 Series™ tackles the emissions challenge head-on and gives you improved productivity levels and fuel consumption.
Perkins

Ideal for downsizing

The high power density and excellent torque in our 1206 range gives machine manufacturers the opportunity to use our 6 cylinder engine instead of a larger engine. Downsizing in this way can save you money and create more space to package new aftertreatment units. The 1206 range is an ideal engine solution for large and medium-sized machines for construction, agriculture, materials handling and general industrial applications.
Perkins

Tailored for your machines

Your needs are our top priority, which is why we provide tailored technology solutions. Working closely with OEMs, we have developed the 1206 range with hundreds of variables so that it easily fits into your machineOur 1206 range engines come with two year warranties as standard and and can also be supported by extended service contractsBuilding on more than 80 years of experience, the 1200 Series benefits from our engineering experience and heritage. Its improved productivity and fuel consumption reduces the total cost of ownership.
Specifications Standard Equipment

Product Specifications for 1206EA-E70TA

Download Print
Maximum Power 202 hp 151 kW
Maximum Torque 642 lb-ft @ 1400 rpm 870 Nm @ 1400 rpm
Rated Speed 1800-2200 rpm 1800-2200 rpm
Minimum Power 174 hp 129 kW
Emissions China NR IV China NR IV
Number of Cylinders 6 inline 6 inline
Cycle 4 stroke 4 stroke
Bore 4.13 in 105 mm
Stroke 5.3 in 135 mm
Displacement 427.7 in³ 7 l
Compression Ratio 16.5:1 16.5:1
Aspiration Turbocharged aftercooled Turbocharged aftercooled
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment DOC+DPF+SCR DOC+DPF+SCR
Cooling System Liquid Liquid
Length 42 in 1064 mm
Width 30 in 755 mm
Height 36 in 904 mm
Dry Weight 1574 lb 714 kg
Length 25.4 in 420 mm
Diameter 10.4 in 266 mm
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

1206EA-E70TA Standard Equipment

Print

Aftertreatment Equipment

  • 3" flex pipe connection kit with rotatable elbow for 60° and 90° RS inlet flexibility
  • SCR - Selective Catalytic Reduction

Air System

  • Standard air cleaners

Cooling System

  • 50:50 water glycol mix
  • Detailed guidance on cooling system design and validation available to ensure machine reliability
  • Top tank temperature 108°C (226°F) as standard to minimize cooling pack size

Electrical and Electronics

  • Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
  • Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments

Flywheel and Flywheel Housing

  • Wide choice of drivetrain interfaces, SAE1, SAE2 and SAE3 configurations

Fuel System

  • Electronic high pressure common rail

Oil System

  • Choice of sumps for different applications

Power Take-Off (PTO)

  • SAE A or SAE B flanges on left-hand side. Right-hand side twin PTO also available. Engine power can also be taken from the front of the engine on some applications.
  • Factory fitted compressors are also available.
