Key Specs

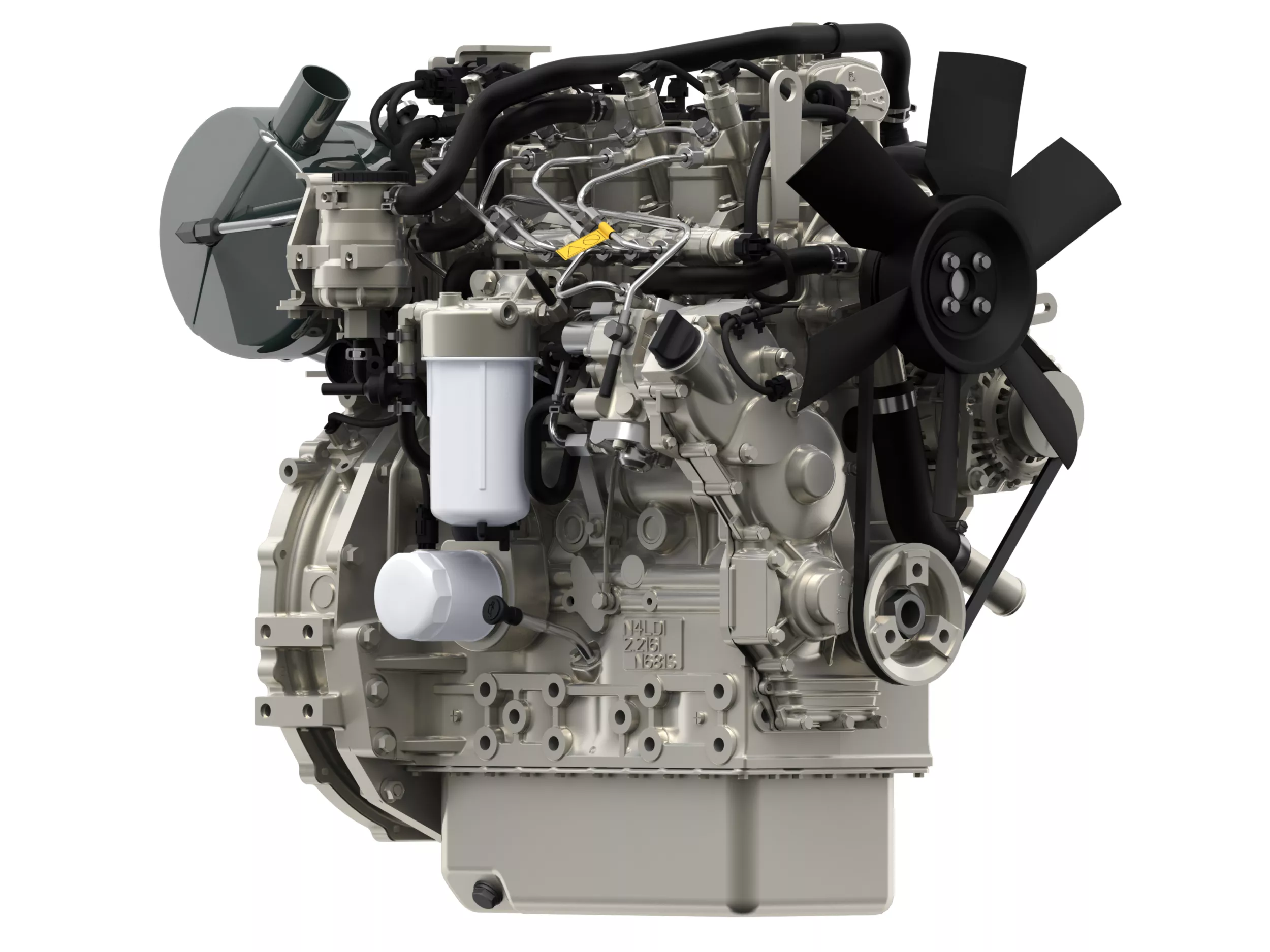

This 2.2 litre engine has been designed to meet the latest emissions standards in North America, Europe and Japan.
The engine is a 4 cylinder, 2.2 litre engine available in a turbocharged configuration. This compact package is capable of producing 45 kW (60 hp) and delivers excellent torque at low speeds, reduced owner and operating costs and extremely low noise and harshness.
Displaying 1-6 of 4
| Maximum Power | 60 hp 45 kW |
| Maximum Torque | 164 lb-ft @ 1600 rpm 222 Nm @ 1600 rpm |
| Rated Speed | 2800 rpm 2800 rpm |
| Minimum Power | 49 hp 36.4 kW |
| Emissions | EU Stage V, U.S. EPA & CARB Tier 4 Final, Japan MLIT Step 4 EU Stage V, U.S. EPA & CARB Tier 4 Final, Japan MLIT Step 4 |
| Number of Cylinders | 4 inline 4 inline |
| Cycle | 4 stroke 4 stroke |
| Bore | 3.3 in 84 mm |
| Stroke | 3.9 in 100 mm |
| Displacement | 135 in³ 2.2 l |
| Compression Ratio | 17.0:1 17.0:1 |
| Aspiration | Turbocharged Turbocharged |
| Combustion System | Direct injection Direct injection |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Aftertreatment | DOC+DPF DOC+DPF |
| Cooling System | Liquid Liquid |
| Length | 31.7 in 807 mm |
| Width | 20.8 in 529 mm |
| Height | 30.1 in 766 mm |
| Dry Weight | 533.5 lb 242 kg |
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
