403D-17

Industrial Diesel Engines 403D-17

Key Specs

Maximum Power
35 hp
26.1 kW
Maximum Torque
78.1 lb-ft @ 1800 rpm
106 Nm @ 1800 rpm
Emissions
UN ECE R96 Stage IIIA
UN ECE R96 Stage IIIA

Tools And Expert Help At Every Turn

Overview

The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 3 cylinder 403-17 model is a mid-range 400 Series engine, combining performance, low operating costs and a compact package. From a packaging point of view, the 403-17 is the ideal engine for small industrial applications. It is offered with both indirect (IDI) and common rail fuel injection systems.403D-17 INDUSTRIAL DIESEL ENGINE1.7 litre, 3 cylinder 23.6-26.1 kW (31.6-35 hp)Designed to meet UN ECE R96 Stage IIIA emission standards. A very quiet 1.7 litre unit that delivers improved performance and reduced operating costs in a small, efficient package

Media Gallery

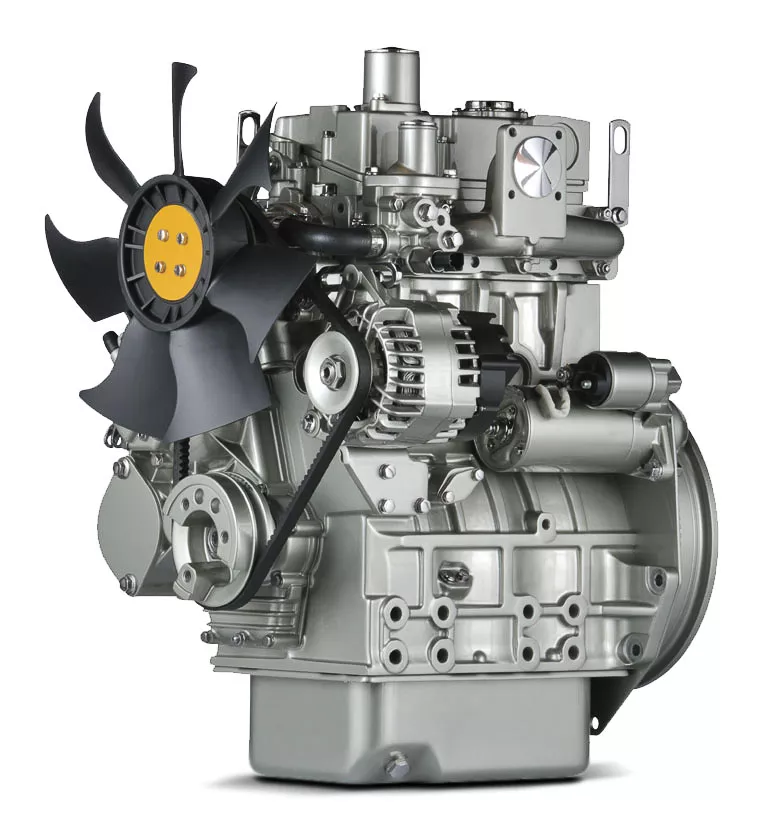

403D-17 Industrial Diesel Engine

Features At A Glance

Perkins

A lifetime of low cost

The 400 Series offers highly competitive performance and fuel economy. Through appropriate use of technology, these engines have been designed to be reliable and to offer low cost of ownership in the wide variety of markets they serve.

Across an extensive power band, the 400 Series range offers you the ability to configure a solution to your specific machine, territory and market requirements.

Overlapping power bands between models and an extensive range of options gives the opportunity to optimise performance and functionality, adding customer value to the application.

We provide one year warranties for constant speed engines and two year warranties for variable speed models as standard.

As a 400 Series end user, you also benefit from Perkins world class product support and service coverage that comes from being a full range power solutions provider.
Perkins

Compact design

The compact design of these engines makes them suitable for a range of applications, including skid steer loaders, mini excavators, wheel loaders, welders, lift platforms, lighting towers, small tractors, air compressors, turf care machinery and materials handling machinery.

Each of the six core engines of the 400 Series is configured for either Stage IIIA/Tier 4 Interim or Stage IIIB/Tier 4 Final emission standards, giving you flexibility depending on your market.
Perkins

Performance and refinement

The 400 Series lineup gives you a seamless power range of 8.2-50 kW (11-67 hp) in 2, 3 and 4 cylinder models designed with a family look and feel. The range offers a wide variety of ratings and configurations that can be tailored to meet the most exacting needs.

The selective use of indirect and direct injection fuel systems enables Perkins to offer world-class engine refinement and low noise levels.
Specifications Standard Equipment

Product Specifications for 403D-17

Download Print
Maximum Power 35 hp 26.1 kW
Maximum Torque 78.1 lb-ft @ 1800 rpm 106 Nm @ 1800 rpm
Rated Speed 2400-2600 rpm 2400-2600 rpm
Minimum Power 31.6 hp 23.6 kW
Emissions UN ECE R96 Stage IIIA UN ECE R96 Stage IIIA
Number of Cylinders 3 inline 3 inline
Cycle 4 stroke 4 stroke
Bore 3.3 in 84 mm
Stroke 3.9 in 100 mm
Displacement 101 in³ 1.7 l
Compression Ratio 23.0:1 23.0:1
Aspiration Naturally aspirated Naturally aspirated
Combustion System Indirect injection Indirect injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment - -
Cooling System Liquid Liquid
Total Lubricating Oil Capacity 1.58 gal (US) 6 l
Total Coolant Capacity 0.66 gal (US) 2.5 l
Length 22.5 in 572 mm
Width 17.8 in 453 mm
Height 25.3 in 643 mm
Dry Weight 359 lb 163 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

403D-17 Standard Equipment

Print

Air System

  • Cast iron exhaust manifold - side outlet
  • Inlet manifold

Electrical and Electronics

  • 12 volt and 24 volt alternator
  • 12 volt and 24 volt starter motor
  • Electronic Shut Off Solenoid (ESOS)

Cooling System

  • Coolant pump belt driven
  • Coolant temperature switch
  • Cooling fan

Fuel System

  • CTD fuel injection pump
  • Spin-on fuel filter

General

  • Cast iron engine block
  • Glow plug starting aid
  • Cold start capability to –20°C (-4°F) (aided)

Oil System

  • Lubricating oil pressure switch
  • Lubricating oil sump
  • Spin-on lubricating oil filter

Power Take-Off (PTO)

  • SAE A PTO
