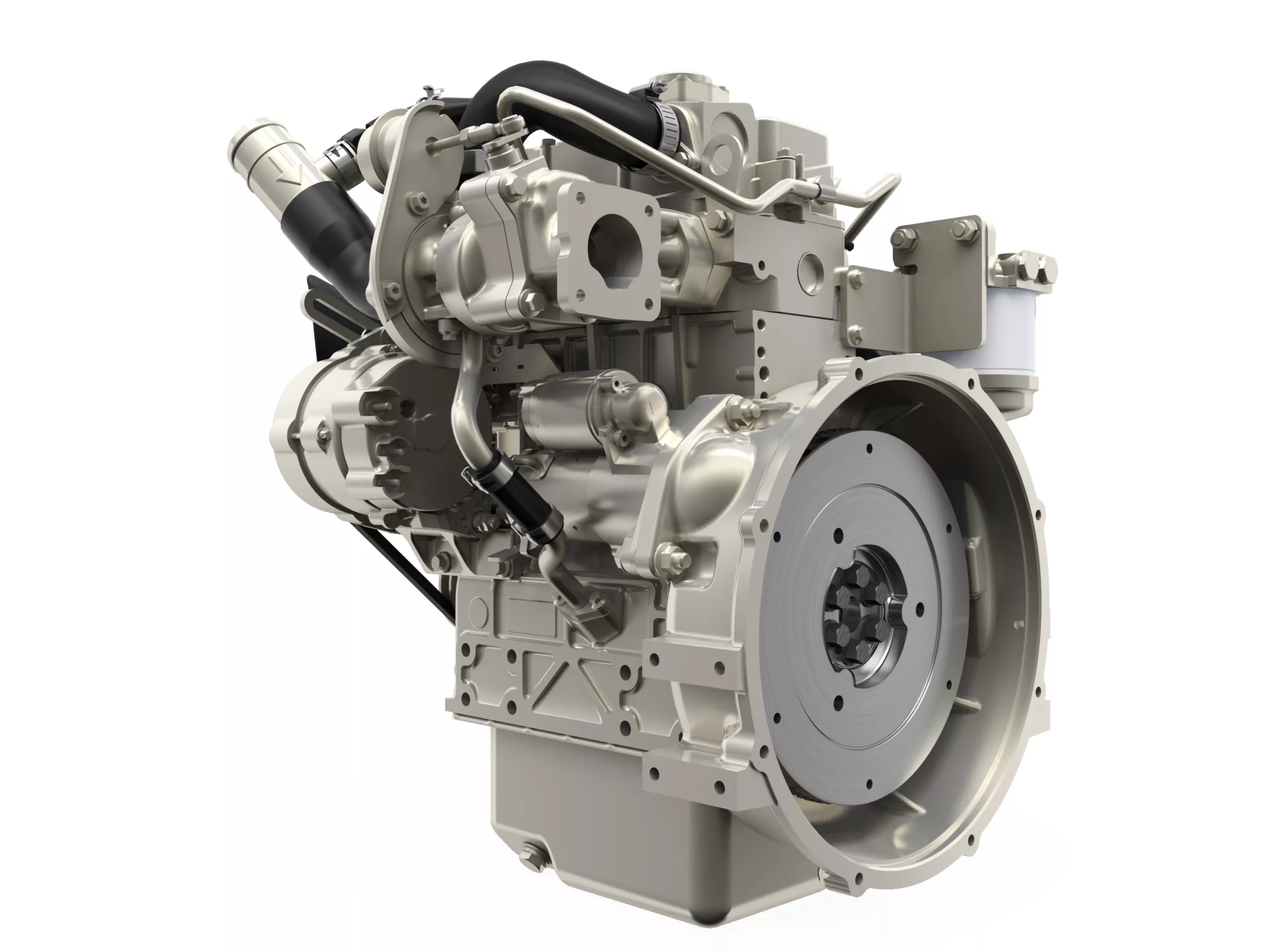

403F-11T

Industrial Diesel Engines 403F-11T

Key Specs

Maximum Power
23.8 hp
17.8 kW
Maximum Torque
60.7 lb-ft @ 1600 rpm
82.3 Nm @ 1600 rpm
Emissions
U.S. EPA Tier 4 Final
U.S. EPA Tier 4 Final

Tools And Expert Help At Every Turn

Overview

The 403F-11T is a turbocharged indirect injection industrial diesel engine that meets U.S. EPA Tier 4 Final without the need for electronic control, aftertreatment or exhaust gas recirculation. It is available with many factory configurable options to minimise the costs of machine development and of manufacturing.

Media Gallery

403J Industrial Diesel Engine

Features At A Glance

Perkins

Dependable power

The Perkins® 400 Series has been proven to deliver durable power. Manufactured in highly automated, state-of-the-art production facilities, a wide range of customisation is available while preserving high quality levels.

Perkins

Tailored for your machines

The 403J-11T is one of the four engine options available from Perkins at 18.4 kW (24 hp), enabling OEMs to balance different installation, operating and commercial requirements. These models are particularly suited to machines where power from a small package size is key, while the turbocharged variant
also delivers improved altitude performance.
Perkins

Quiet in service

The stiff block and indirect injection system make this a quiet engine, minimising operator fatigue and saving money for OEMs in sound attenuation measures.
Specifications Standard Equipment

Product Specifications for 403F-11T

Download Print
Maximum Power 23.8 hp 17.8 kW
Maximum Torque 60.7 lb-ft @ 1600 rpm 82.3 Nm @ 1600 rpm
Rated Speed 2800 rpm 2800 rpm
Minimum Power 23.8 hp 17.8 kW
Emissions U.S. EPA Tier 4 Final U.S. EPA Tier 4 Final
Number of Cylinders 3 inline 3 inline
Cycle 4 stroke 4 stroke
Bore 3 in 77 mm
Stroke 3.2 in 81 mm
Displacement 67 in³ 1.1 l
Compression Ratio 22.1:1 22.1:1
Aspiration Turbocharged Turbocharged
Combustion System Indirect injection Indirect injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment - -
Cooling System Liquid Liquid
Total Lubricating Oil Capacity 1.16 gal (US) 4.4 l
Length 19.7 in 500 mm
Width 20.2 in 513 mm
Height 23.1 in 588 mm
Dry Weight 240 lb 108 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

403F-11T Standard Equipment

Print

Cooling System

  • Coolant temperature switch

Air System

  • Turbocharged

Electrical and Electronics

  • Alternator 12 volts, 15, 40 and 65 amp
  • Starter motor 12 volts, 1.4 kW
  • Electronic shut off solenoid (ESOS)

Flywheel and Flywheel Housing

  • Flywheel Housing SAE 5
  • Flywheel SAE 6 1/2

Fuel System

  • Fuel injection pump
  • Split element fuel filter

General System

  • Gradeability 25° continuous

Oil System

  • Closed circuit breather
  • Lubricating oil pressure switch
  • Dipstick options available
