403F-15

Industrial Diesel Engines 403F-15

Key Specs

Maximum Power
24.6 hp
18.4 kW
Maximum Torque
63.4 lb-ft @ 1800 rpm
86 Nm @ 1800 rpm
Emissions
U.S EPA Tier 4 Final
U.S EPA Tier 4 Final

Tools And Expert Help At Every Turn

Overview

The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 3 cylinder 403F-15 model is one of Perkins smallest engines, combining performance, low operating costs and an ultra-compact package. From a packaging point of view, the 403F-15 is the ideal engine for small industrial applications. Its simple, robust mechanical fuel system makes it easy to install and maintain.

A practical solution for you to upgrade to the latest emissions standards with minimum machine change and development costs, and a common machine for export markets.

Media Gallery

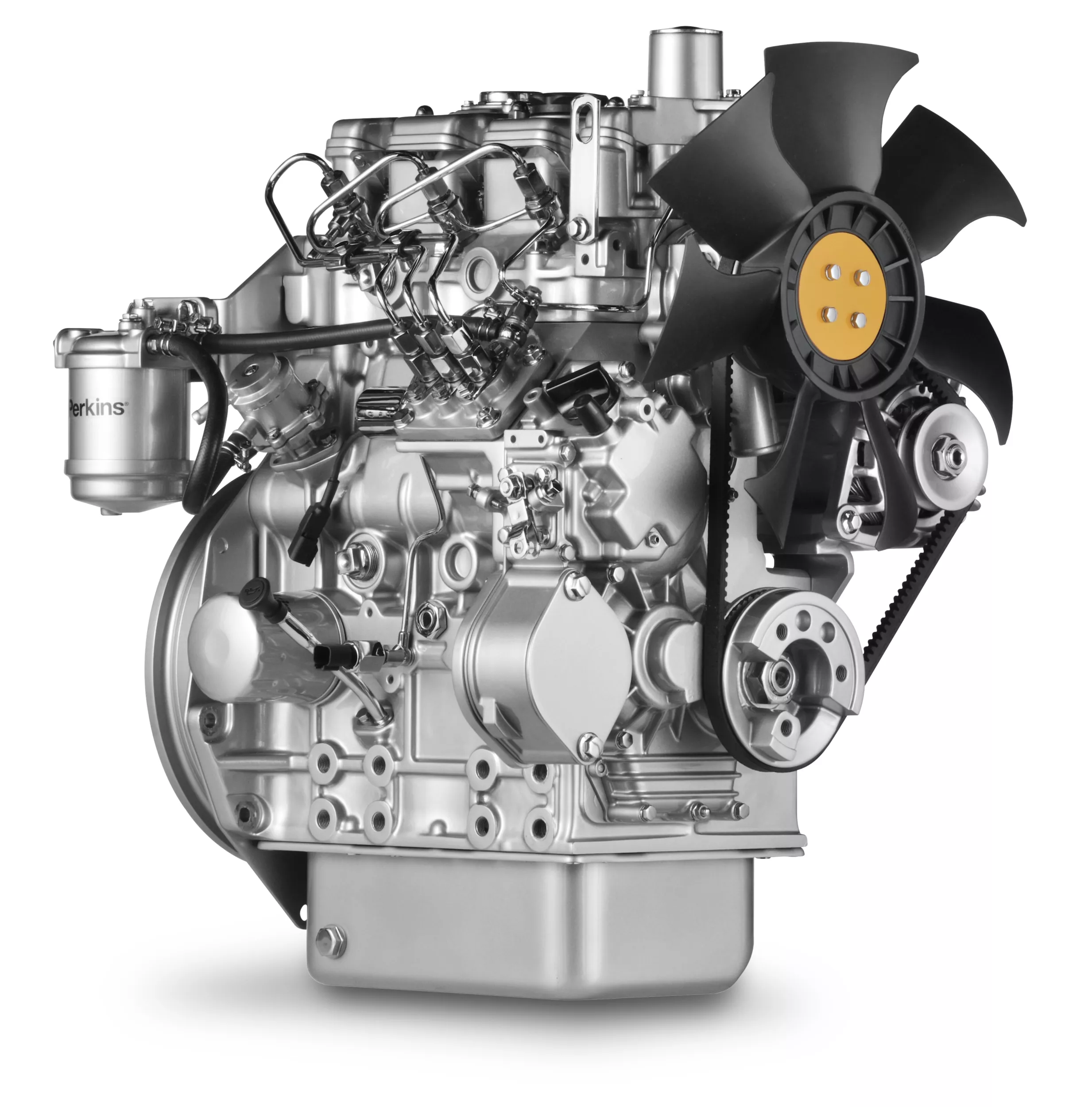

403F-15 Industrial Diesel Engine

Features At A Glance

Displaying 1-6 of 4

Perkins

Compact design

Up to 18.4 kW (24.7 hp) from an engine envelope of 0.11 m2 (3.8 ft2)

Easy installation
Perkins

Durable and reliable

Product design and process improvements enhance both engine reliability and durability

The introduction of a simple electronic governor system gives customers the flexibility of electronic machine integration if needed

A standard two-year warranty demonstrates our confidence in durability and reliability
Perkins

Low operating costs

Approved for operation on biodiesel* concentrations of up to 20%

Engine durability and reliability, the warranty offering and ease of installation combine to drive down the cost of ownership. We provide one-year warranties for constant speed engines and two-year warranties for variable speed models, as standard
Perkins

Product support

With highly trained Perkins distributors in thousands of communities in over 180 countries, you are never far away from expert product knowledge, genuine parts and a range of advanced diagnostic technology for keeping your engine in peak condition

To find your local distributor: www.perkins.com/distributor
Specifications Standard Equipment

Product Specifications for 403F-15

Download Print
Maximum Power 24.6 hp 18.4 kW
Maximum Torque 63.4 lb-ft @ 1800 rpm 86 Nm @ 1800 rpm
Rated Speed 2100 rpm 2100 rpm
Minimum Power 24.6 hp 18.4 kW
Emissions U.S EPA Tier 4 Final U.S EPA Tier 4 Final
Number of Cylinders 3 inline 3 inline
Cycle 4 stroke 4 stroke
Bore 3.3 in 84 mm
Stroke 3.5 in 90 mm
Displacement 91 in³ 1.4 l
Compression Ratio 22.5:1 22.5:1
Aspiration Naturally aspirated Naturally aspirated
Combustion System Indirect injection Indirect injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment - -
Cooling System Liquid Liquid
Length 22.5 in 572 mm
Width 17.9 in 453 mm
Height 25.3 in 643 mm
Dry Weight 328 lb 149 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

403F-15 Standard Equipment

Print

Cooling System

  • Radiator with mounting feet available
  • Belt driven coolant pump
  • Coolant temperature switch
  • Cooling fan

Fuel System

  • Fuel injection pump
  • Split element fuel filter

General

  • Gradeability 30° continuous

Electrical and Electronics

  • Alternator 12 volt, 40, 65 and 85 Amp
  • Electronic controlled governing
  • Starter motor 12 volt, 2.0 kW
  • Glow plug starting aid

Flywheel and Flywheel Housing

  • Flywheel SAE 7 1/2
  • Flywheel housing SAE 4

Oil System

  • Dipstick options available
  • Lubricating oil pressure switch
  • Optional Closed Circuit Breather
  • Spin-on lubricating oil filter

Power Take-Off (PTO)

  • SAE A PTO
