2506D-E15TA

Industrial Diesel Engines 2506D-E15TA

Key Specs

Maximum Power
595 hp
444 kW
Maximum Torque
2004 lb-ft @ 1400 rpm
2717 Nm @ 1400 rpm
Emissions
EU Stage IIIA/U.S. EPA Tier 3, China NRIII
EU Stage IIIA/U.S. EPA Tier 3, China NRIII

Tools And Expert Help At Every Turn

Overview

The ability to power your machine line-up with one engine supplier is truly achieveable with Perkins. We have introduced a platform of 9-18 litre industrial engines that completes our market-leading industrial power range and covers 8.8-597 kW (11.8-800 hp).

Media Gallery

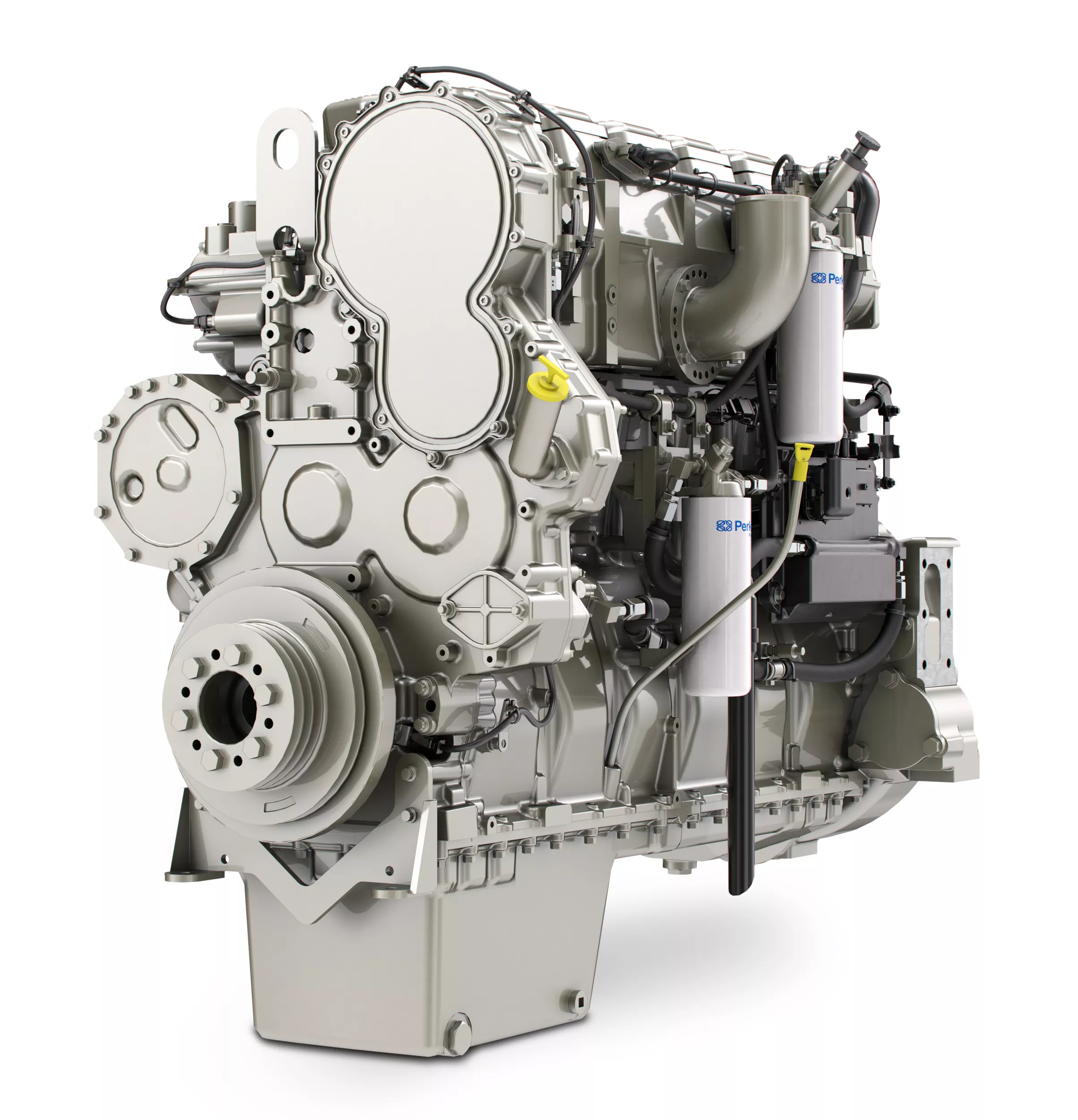

2506D-E15TA Industrial Diesel Engine

Features At A Glance

Perkins

A lifetime of low cost

We have designed the Perkins 2000 range with optimised fuel consumption in mind, matching it to the operating cycles of a wide range of equipment and applications. Low cost maintenance is achieved through 500 hour oil change intervals.
Perkins

Dependable Power

The Perkins 2000 range is suitable for the toughest operating conditions. Built in a world class manufacturing facility, and with proven core engine designs you can be assured of many hours of productive life.
Perkins

Low cost of Installation

Features built into the 2000 Range provide opportunities to reduce the cost of installation into your machine. With a compact package size of the engine, supported by multiple options available to support optimisation for your application. Supported by our expertise of application installations, the knowledge required to improve total integration is at all times you work with Perkins.
Specifications Standard Equipment

Product Specifications for 2506D-E15TA

Download Print
Maximum Power 595 hp 444 kW
Maximum Torque 2004 lb-ft @ 1400 rpm 2717 Nm @ 1400 rpm
Rated Speed 1800-2100 rpm 1800-2100 rpm
Minimum Power 440 hp 328 kW
Emissions EU Stage IIIA/U.S. EPA Tier 3, China NRIII EU Stage IIIA/U.S. EPA Tier 3, China NRIII
Number of Cylinders 6 inline 6 inline
Cycle 4 stroke 4 stroke
Bore 5.4 in 137 mm
Stroke 6.7 in 171 mm
Displacement 928 in³ 15.2 l
Compression Ratio 18.0:1 18.0:1
Aspiration Turbocharged aftercooled Turbocharged aftercooled
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment - -
Cooling System Liquid Liquid
Length 54.2 in 1377 mm
Width 36.5 in 926 mm
Height 48.3 in 1226 mm
Dry Weight 3239 lb 1469 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

2506D-E15TA Standard Equipment

Print

Air System

  • Turbocharged aftercooled

Electrical and Electronics

  • All connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
  • Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
  • Full electronic control system

Cooling System

  • Detailed guidance on cooling system design and validation available to ensure machine reliability
  • Vertical outlet thermostat housing, centifugal water pump

Flywheel and Flywheel Housing

  • Wide choice of drivetrain interfaces, SAE0 and SAE1 configurations

Fuel System

  • Mechanical Unit Injector fuel system, controlled electronically

Oil System

  • Choice of sumps for different applications
  • Oil cooler, oil filler, oil filter, oil dipstick, oil pump (gear-driven)
  • Open crankcase ventilation system with fumes disposal (optional OCV filter system)

Power Take-Off (PTO)

  • Engine power can also be taken from the front of the engine on some applications
  • SAE1 power take-off available with optional SAE A, SAE B and SAE C power take-off drives
