402J-05

Industrial Diesel Engines 402J-05

Key Specs

Maximum Power
11.8 hp
8.8 kW
Maximum Torque
22 lb-ft @ 2100 rpm
29.7 Nm @ 2100 rpm
Emissions
EU Stage V
EU Stage V

Tools And Expert Help At Every Turn

Overview

The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 2 cylinder 402-05 model is one of Perkins smallest engines, combining performance, low operating costs and an ultra-compact package. From a packaging point of view, the 402-05 is the ideal engine for small industrial applications. Its simple, robust mechanical fuel system makes it easy to install and maintain.

Media Gallery

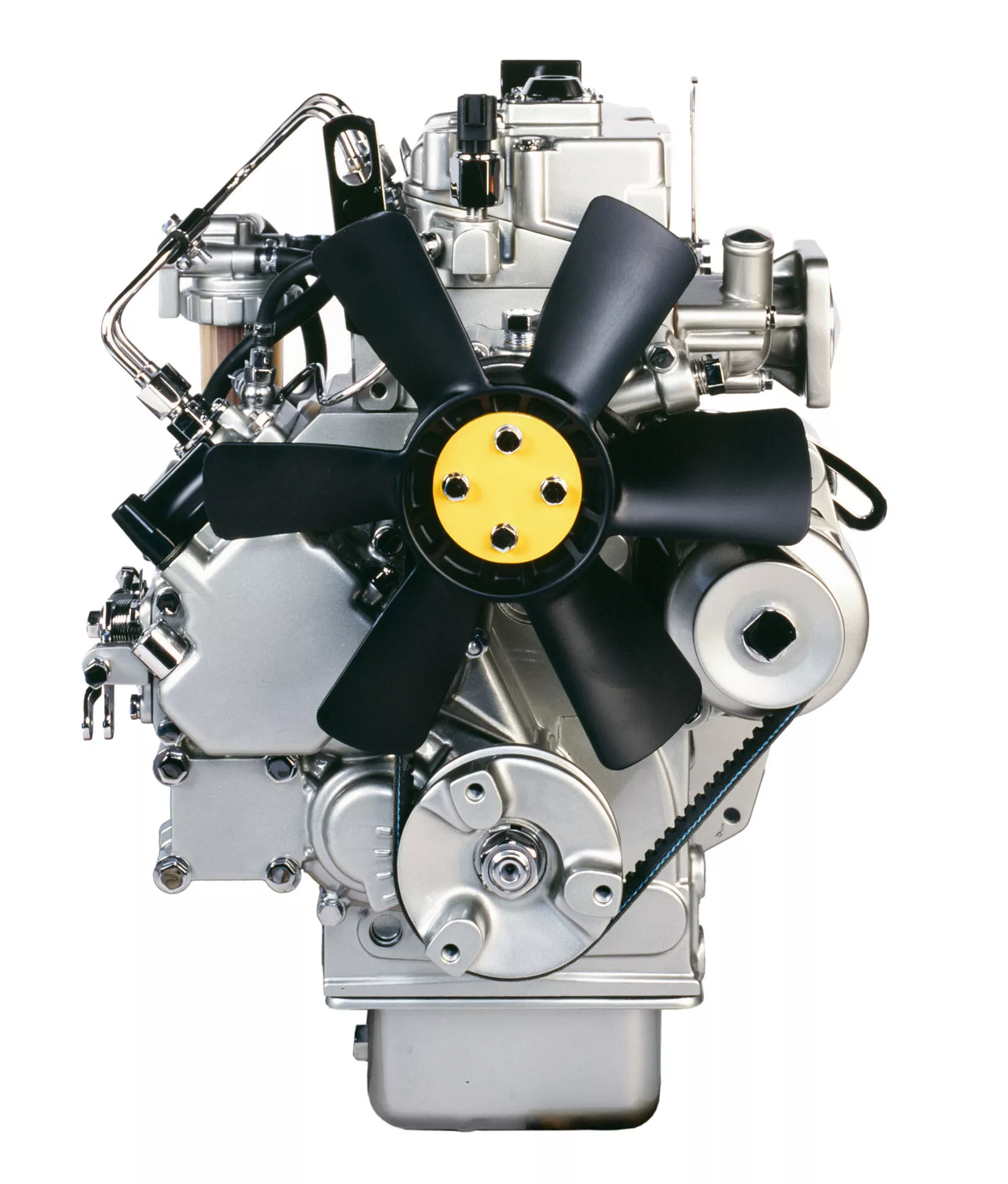

402J-05 Industrial Diesel Engine

Features At A Glance

Displaying 1-6 of 4

Perkins

Compact Installation

High power and torque from a compact package, ideal for downsizing and easy installation.
Perkins

Ideal Application

The compact design of these engines makes them suitable for a range of applications, including skid steer loaders, mini excavators, wheel loaders, welders, lift platforms, lighting towers, small tractors, air compressors, turf care machinery and materials handling machinery.
Perkins

Proven technology

With simple and long proven technology, the 402-05 engine offers customers an uncomplicated solution with durability built in from the core. Each component tested to withstand the diverse working environments our customers and their applications.
Perkins

Durable and Reliable

Developments and progress made on fluid consumption provide an all round solution which reaches the highest emissions standards available, from a company with over 85 years of engineering expertise.
Specifications Standard Equipment

Product Specifications for 402J-05

Download Print
Maximum Power 11.8 hp 8.8 kW
Maximum Torque 22 lb-ft @ 2100 rpm 29.7 Nm @ 2100 rpm
Rated Speed 3000 rpm 3000 rpm
Minimum Power 10 hp 7.5 kW
Emissions EU Stage V EU Stage V
Number of Cylinders 2 inline 2 inline
Cycle 4 stroke 4 stroke
Bore 2.6 in 67 mm
Stroke 2.8 in 72 mm
Displacement 31 in³ 0.5 l
Compression Ratio 23.5:1 23.5:1
Aspiration Naturally aspirated Naturally aspirated
Combustion System Indirect injection Indirect injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment - -
Cooling System Liquid Liquid
Length 16 in 406 mm
Width 14.6 in 371 mm
Height 20.6 in 523 mm
Dry Weight 126 lb 57 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

402J-05 Standard Equipment

Print

Air System

  • Exhaust manifold -side outlet
  • Inlet manifold

Electrical and Electronics

  • Alternator 12 volt 40 amp with DC output
  • Electronic controlled governing
  • Starter motor 12 volt

Cooling System

  • Belt-driven coolant pump
  • Cooling fan
  • Coolant temperature switch
  • High and low fan position

Flywheel and Flywheel Housing

  • Adapter plate

Fuel System

  • Fuel injection pump
  • Spin-on fuel filter

General

  • Cast iron engine block
  • Closed circuit breather
  • Cold start capability to –20°C (-4°F) (aided)
  • Engine mountings
  • Glow plug starting aid
  • Gradeability 35° continuous

Oil System

  • Lubricating oil sump
  • Spin on lubricating oil filter
  • Lubricating oil pressure switch
