1104D-E44TA

Industrial Diesel Engines 1104D-E44TA

Key Specs

Maximum Power
142 hp
106 kW
Maximum Torque
411.2 lb-ft @ 1400 rpm
558 Nm @ 1400 rpm
Emissions
UN ECE R96 Stage IIIA, China Nonroad Stage III, Brazil MAR-1
UN ECE R96 Stage IIIA, China Nonroad Stage III, Brazil MAR-1

Tools And Expert Help At Every Turn

Overview

Whatever your application, there's an 1104 engine for you. Part of the Perkins 1100 Series, the range's 4 cylinder, 4.4 litre engines are smooth and quiet in operation. Designed to meet EU Stage II/IIIA and U.S. EPA Tier 2/Tier 3 equivalent emissions standards, the 1104 range offer a choice of mechanical or electronically controlled common rail engines. Electronically controlled engines deliver the right fuel injection for the load applied to the engine. Common front and rear ends, connection points and components across the range, making it easy to install a different 1100 Series engine in your application.

Electronic common rail, turbocharged aftercooled engine designed to meet EU Stage IIIA/U.S. EPA Tier 3 equivalent emissions standards for off-road machines

Media Gallery

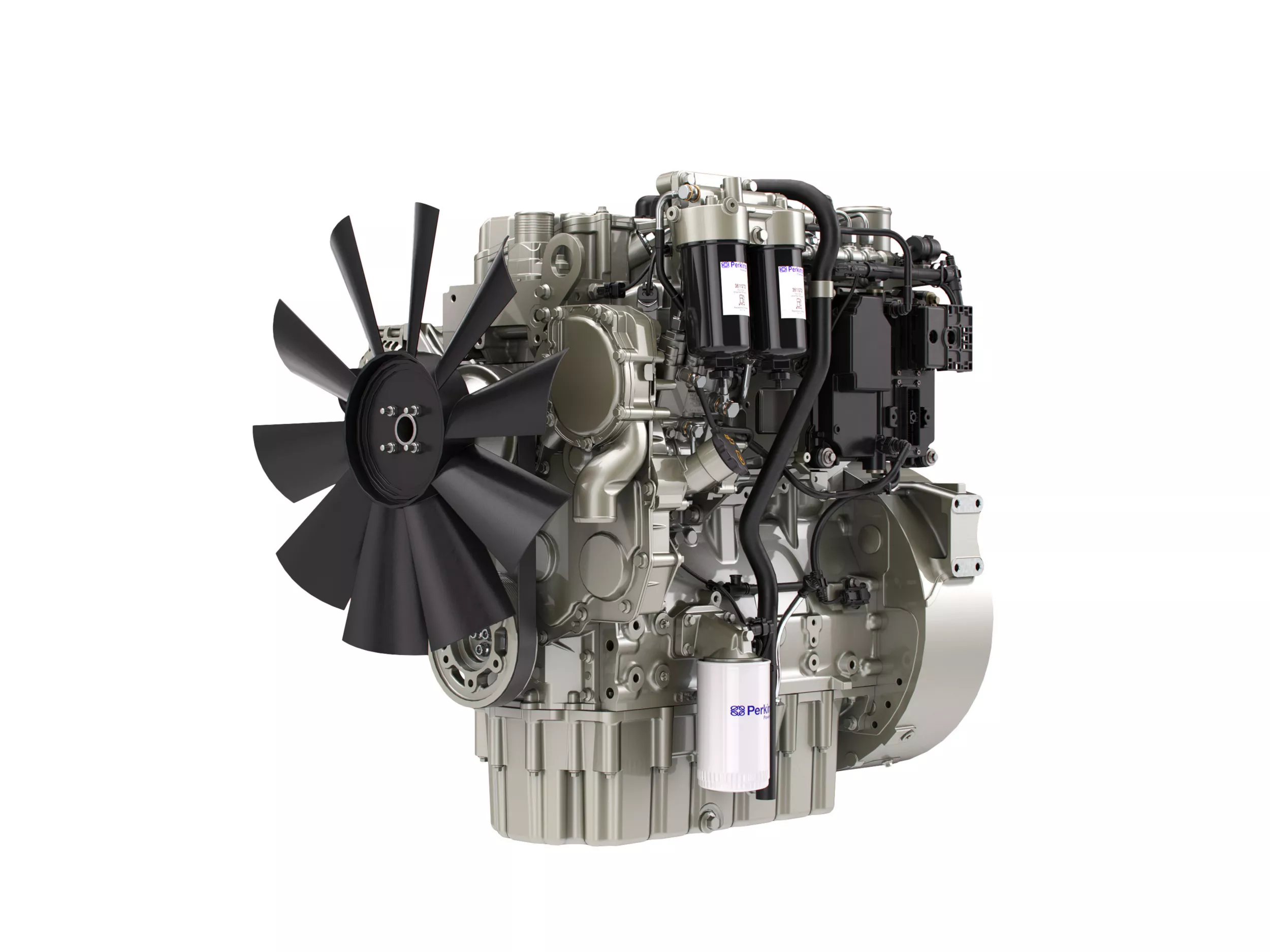

1104D-E44TA Industrial Diesel Engine

Features At A Glance

Displaying 1-6 of 6

Perkins

Choice of electronic engine

A robust electronically controlled common rail engine provides the opportunity to increase power and performance, whilst maintaining displacement volume, and still achieving emissions standards. It uses advanced common rail, fuel pump and injectors, combined with the latest high capacity fuel filtration to provide an engine which is reliable when used with varying standards of fuel around the world. With an electronic control and high pressure common rail system, the engine can be integrated fully into the machine, delivering smoother operation for the user, faster response and providing operator feedback on engine performance.
Perkins

Designed for lesser regulated territories

The 1100 Series range of engines have been specifically designed for use in territories with Stage II/IIIA and Tier 2/3 equivalent emissions standards, using the best technologies to ensure a reliable and easy to maintain machine. With a choice of naturally aspirated, turbocharged and turbocharged aftercooled it offers the best combination of power delivery and response.
Perkins

Ease of maintenance

All of the engines have 500 hour service intervals. And single side service components, for ease of end user servicing.
Perkins

Easy to upgrade

Common front and rear ends, connection points and components across the range mean that you can easily install a different 1100 Series engine in your application.
Perkins

Expertise whenever you need it

With our network of distributors, you will find all the advice you need to ensure you get the right engine. By building strong relationships with you, we make sure you have access to the full power of the Perkins brand and expertise. Our fully trained experts deliver total service support 24/7, 365 days of the year. Whether you need technical information, parts identification or ordering, our distribution network is there to make sure your Perkins engine keeps on running at peak performance.
Perkins

Oil and fuel filtration

The high quality oil and fuel filtration on our 1100 Series range produces an engine that is reliable and durable. Ecoplus fuel filtration is available to boost its clean running qualities and the engine is capable of running on a wide range of global fuels including biodiesel.
Specifications Standard Equipment

Product Specifications for 1104D-E44TA

Download Print
Maximum Power 142 hp 106 kW
Maximum Torque 411.2 lb-ft @ 1400 rpm 558 Nm @ 1400 rpm
Rated Speed 2200 rpm 2200 rpm
Minimum Power 100 hp 74.5 kW
Emissions UN ECE R96 Stage IIIA, China Nonroad Stage III, Brazil MAR-1 UN ECE R96 Stage IIIA, China Nonroad Stage III, Brazil MAR-1
Number of Cylinders 4 inline 4 inline
Cycle 4 stroke 4 stroke
Bore 4.1 in 105 mm
Stroke 5 in 127 mm
Displacement 269 in³ 4.4 l
Compression Ratio 16.9:1 16.9:1
Aspiration Turbocharged aftercooled Turbocharged aftercooled
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment - -
Cooling System Liquid Liquid
Length 24.8 in 631 mm
Width 24.6 in 626 mm
Height 37.7 in 958 mm
Dry Weight 794 lb 360 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

1104D-E44TA Standard Equipment

Print

Air System

  • Air compressor
  • Exhaust manifold
  • Induction manifold

Electrical and Electronics

  • Alternator
  • Control panel
  • Starter motor

Cooling System

  • Cooling pack
  • Fan drive

Flywheel and Flywheel Housing

  • Flywheel and starter ring

Fuel System

  • Fuel filter

General

  • Cold start aid
  • Engine mountings

Oil System

  • Lubricating oil filter and breather
  • Oil filter

Power Take-Off (PTO)

  • Belt driven auxiliaries
  • Front end drive
  • SAE B PTO drive
  • Timing case and gear driven auxiliaries
