Key Specs

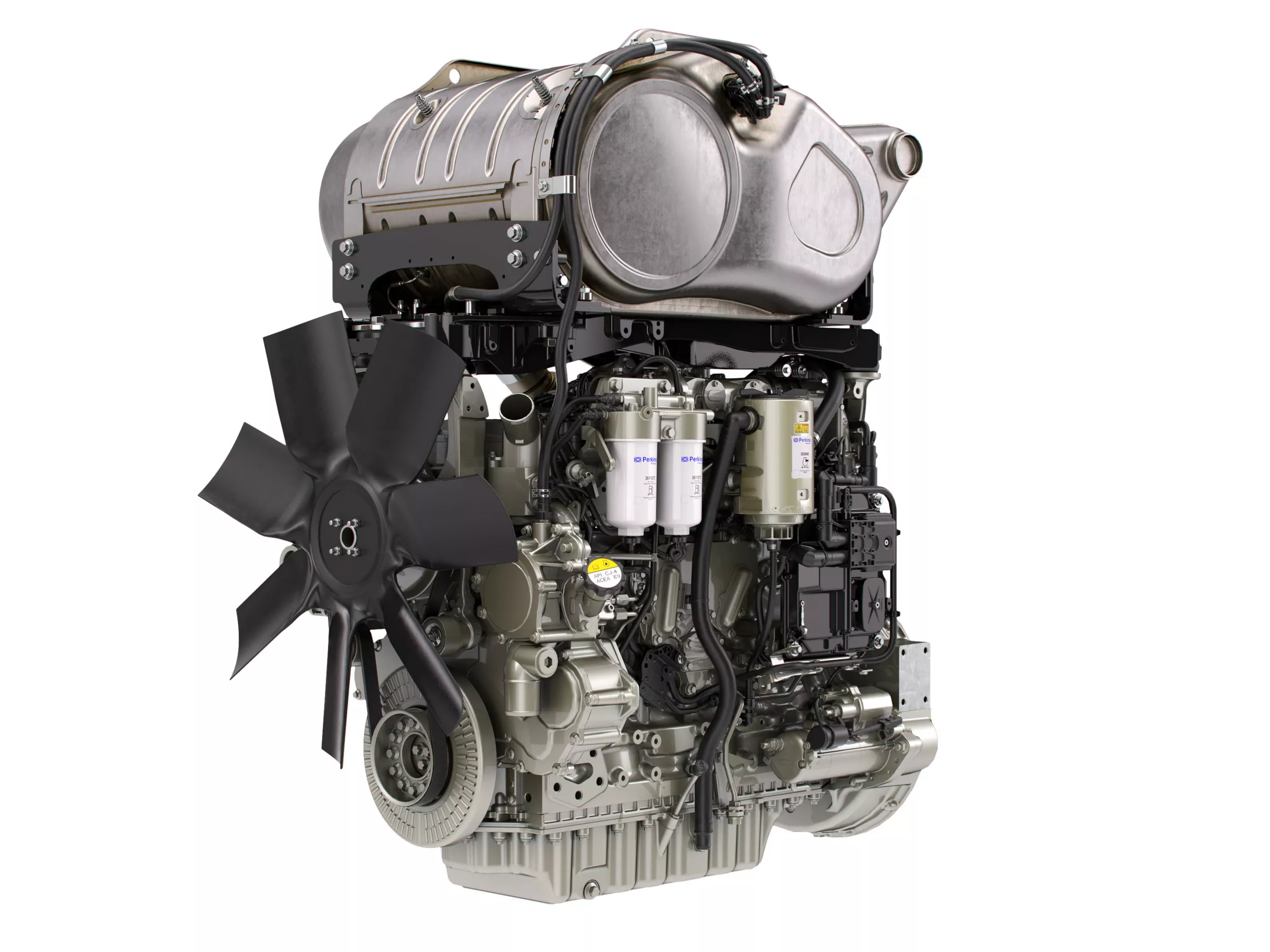

The 6 cylinder option for the Perkins 1200 Series, the 1206J gives you a complete power solution that is EU Stage V - ready. The choice of options, engine configurations and robust technology allows you to integrate the 1206 range into your equipment with minimum re-engineering.
| Maximum Power | 320 hp 239 kW |
| Maximum Torque | 935 lb-ft @ 1400 rpm 1282 Nm @ 1400 rpm |
| Rated Speed | 2200 rpm 2200 rpm |
| Minimum Power | 202 hp 151 kW |
| Emissions | EU Stage V, U.S. EPA & CARB Tier 4 Final EU Stage V, U.S. EPA & CARB Tier 4 Final |
| Number of Cylinders | 6 inline 6 inline |
| Cycle | 4 stroke 4 stroke |
| Bore | 4.1 in 105 mm |
| Stroke | 5.3 in 135 mm |
| Displacement | 427.7 in³ 7 l |
| Compression Ratio | 16.5:1 16.5:1 |
| Aspiration | Turbocharged aftercooled Turbocharged aftercooled |
| Combustion System | Direct injection Direct injection |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Aftertreatment | DOC+DPF+SCR DOC+DPF+SCR |
| Cooling System | Liquid Liquid |
| Length | 41.2 in 1047 mm |
| Width | 31.4 in 798 mm |
| Height | 35.9 in 912 mm |
| Dry Weight | 1658 lb 752 kg |
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
