2606J-E13TA

Industrial Open Power Units 2606J-E13TA 2606J-E13TA

Key Specs

Maximum Power
690 hp
515 kW
Maximum Torque
2360 lb-ft @ 1300 rpm
3200 Nm @ 1300 rpm
Emissions
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014, Korea Stage V
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014, Korea Stage V

Tools And Expert Help At Every Turn

Overview

The Perkins® 2606J-E13TA IOPU provides a complete
plug-and-play power solution to meet EU Stage V, U.S.
EPA Tier 4 Final and other equivalent emissions standards.
The 2606EA-E13TA IOPU meets China Nonroad Stage IV
emissions standards. Beyond the baseline variable turbocharger
and common rail direct injection technologies, the IOPU
configurations come equipped with engine-mounted
aftertreatment, an integrated cooling pack, and full wire
harnessing coupled to a single engine-mounted ECM.

Media Gallery

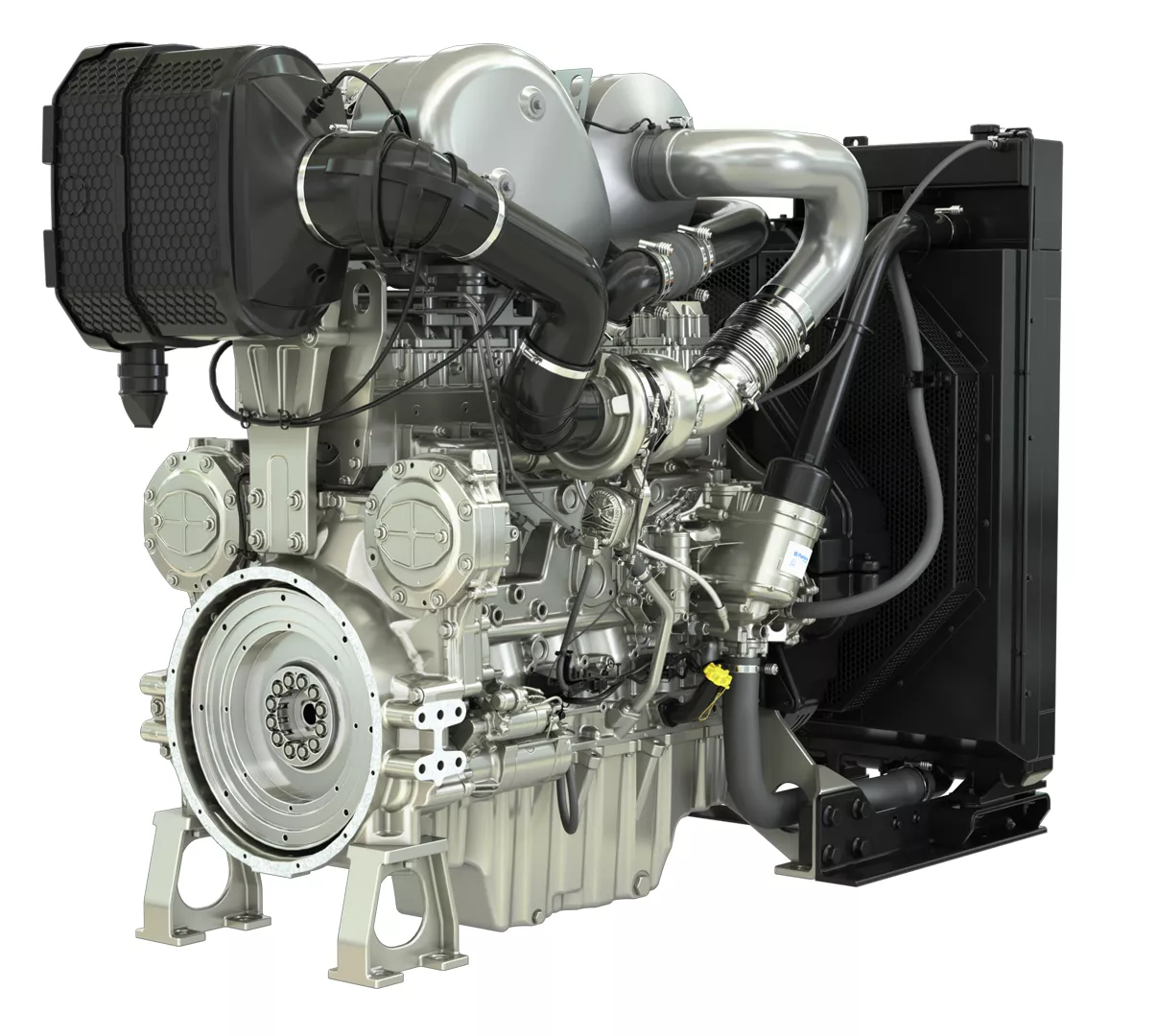

2606J-E13TA Industrial Open Power Unit

Features At A Glance

Low cost installation

Low cost Installation

Beyond basic industrial configurability, the IOPU provides customers with a pre-mounted over-head aftertreatment system, an engine-mounted air intake cleaner, and a full cooling pack which includes the radiator, a fan, and lines (both air and coolant). The IOPU variations provide customers with the ability to drop in a complete configuration, streamlining final assembly and minimising installation costs.

Dependable power

Dependable Power

Advanced manufacturing capabilities and processes assure dependable power, accentuated by highly engineered and optimised designs including rear gear train, fluids and fuel modules, and a high-pressure common rail fuel injection system.

Think global, act local

Think global, act local

The Perkins distributor network offers dedicated experience and knowledge of Perkins diesel engines and provides direct customer focus, protecting your assets through extended service contract options.
Specifications Standard Equipment Optional Equipment

Product Specifications for 2606J-E13TA

Download Print
Maximum Power 690 hp 515 kW
Maximum Torque 2360 lb-ft @ 1300 rpm 3200 Nm @ 1300 rpm
Rated Speed 1800-2100 rpm 1800-2100 rpm
Minimum Power 456 hp 340 kW
Emissions EU Stage V, U.S. EPA Tier 4 Final, Japan 2014, Korea Stage V EU Stage V, U.S. EPA Tier 4 Final, Japan 2014, Korea Stage V
Number of Cylinders In-line 6 In-line 6
Cycle 4 stroke 4 stroke
Bore 5.1 in 130 mm
Stroke 6.4 in 162 mm
Displacement 787.2 in³ 12.9 l
Compression Ratio 18:1 18:1
Aspiration Turbocharged aftercooled Turbocharged aftercooled
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment DOC+DPF+SCR DOC+DPF+SCR
Cooling System Liquid Liquid
Length 89 in 1160 mm
Width 46 in 1160 mm
Height 65 in 1160 mm
Dry Weight 3856 lb 1749 kg

2606J-E13TA Standard Equipment

Print

Air System

  • Air-to-air aftercooled
  • Front or rear exhaust configurations available
  • Variable turbocharger

Control System

  • Advanced controls - electronic control system
  • Automatic altitude compensation
  • Configurable software features
  • Engine monitoring system SAE J1939 broadcast and control
  • Integrated, advanced electronic control module (ECU)
  • Over-foam wiring harness
  • Power compensated for fuel temperature
  • Remote fan control

Cooling System

  • Centrifugal water pump
  • Detailed guidance on cooling system design and validation available to ensure machine reliability
  • Fluids module, which includes: water pump, oil cooler, top-service cartridge oil filter (optional), dual coolant thermostats, and single oil thermostat

Flywheel and Flywheel Housing

  • Standard SAE No. 1 flywheel housing with SAE No. 14 or 140 flywheels

Fuel System

  • Common rail direct injection fuel system with zero-static leak injectors
  • Fuel manifold which allows for outboard or rearward fuel return-to-tank plumbing as well as coolant supply
  • Fuel module, which includes: primary and secondary cartridge filters, and a manual or electric priming pump
  • Oil-lubricated high pressure fuel and mechanical fuel transfer pump combination
  • Remote fuel module available

General

  • Lifting eyes
  • Vibration damper

Oil System

  • Choice of front, rear or centre sumps
  • Gear-driven oil pump
  • No mess service oil filter drainback feature built into fluids module
  • No-service-needed passive open crankcase ventilation filtration system built into the valve cover (required for EU Stage V certification engines)
  • Oil cooler
  • Oil dipstick
  • Oil filler
  • Oil level sensor
  • Remote oil filter variant of the fluids module available

Power Take-Off (PTO)

  • Up to 5 additional power take-offs: 2 rear facing (SAE B, C, or D), 2 forward-facing (SAE A or SAE B), and an additional low-mount forward-facing (SAE B)

2606J-E13TA Optional Equipment

Print

Industrial Power Unit

  • Factory-installed cooling pack which includes the radiator, the air-to-air aftercooler (ATAAC), coolant lines to and from the radiator, and air lines to and from the ATAAC.
  • Factory-installed engine-mounted aftertreatment system, pre-connected exhaust air lines, and air cleaners
  • Factory-installed instrument / control panels embedded with telematics units
