2206D-E13TA

Industrial Open Power Units 2206D-E13TA 2206D-E13TA

Key Specs

Maximum Power
536 hp
400 kW
Maximum Torque
1735 lb-ft @ 1400 rpm
2353 Nm @ 1400 rpm
Emissions
Brazil MAR-1, UN ECE R96 Stage IIIA
Brazil MAR-1, UN ECE R96 Stage IIIA

Tools And Expert Help At Every Turn

Overview

The Perkins® 2206D-E13TA IOPU provides a complete plug-and-play power solution to meet Brazil MAR-1 and UN R96 Stage IIIA emission standards and UN R120 performance standard for measurement of net power and specific fuel consumption. The IOPU configurations come equipped with engine-mounted air filter design, an integrated cooling pack, and full wire harnessing coupled to a single engine-mounted ECM.

Media Gallery

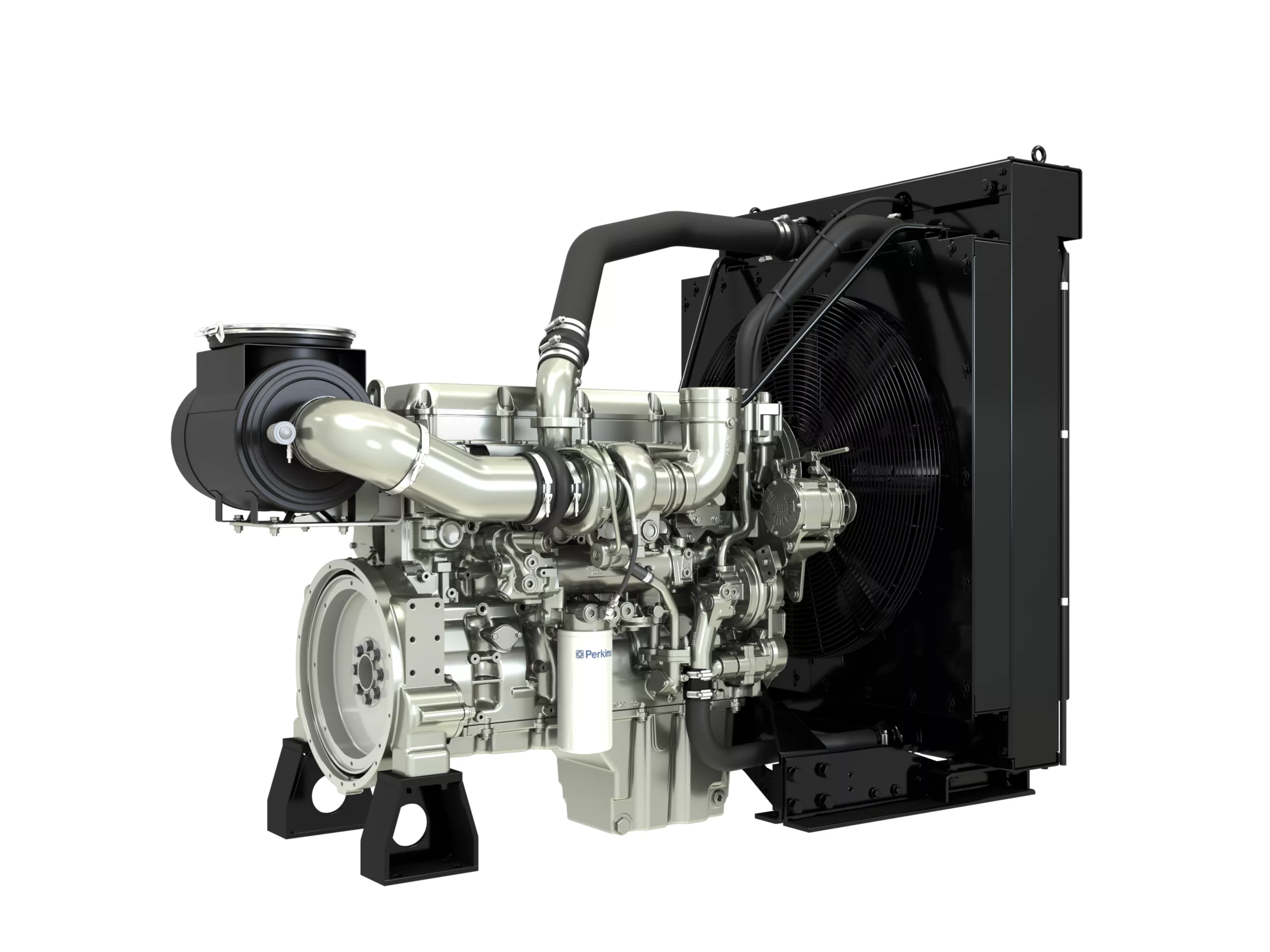

2206D-E13TA LRC Industrial Open Power Unit

Features At A Glance

Displaying 1-6 of 4

Low cost installation

Low cost Installation

Beyond basic industrial configurability, the IOPU provides customers with a pre-mounted over-head aftertreatment system, an engine-mounted air intake cleaner, and a full cooling pack which includes the radiator, a fan, and lines (both air and coolant). The IOPU variations provide customers with the ability to drop in a complete configuration, streamlining final assembly and minimising installation costs.

A lifetime of low cost

A lifetime of low cost

We have designed the Perkins 2200 series range with optimised fuel consumption in mind, matching it to the operating cycles of a wide range of equipment and applications. Low cost maintenance is achieved through a minimum 5,000 hour service interval and 500 hour oil change intervals.

Dependable power

Dependable power

The Perkins 2200 series is built off a proven core, where it has been used in the toughest operating conditions. Built in a world class manufacturing facility, you can be assured of many hours of productive life. With an aftertreatment system that works when you need it to, you won't have to worry about any downtime impacting your days work.

Think global, act local

Think global, act local

The Perkins distributor network offers dedicated experience and knowledge of Perkins diesel engines and provides direct customer focus, protecting your assets through extended service contract options.
Specifications Standard Equipment Optional Equipment

Product Specifications for 2206D-E13TA

Download Print
Maximum Power 536 hp 400 kW
Maximum Torque 1735 lb-ft @ 1400 rpm 2353 Nm @ 1400 rpm
Rated Speed 1800-2100 rpm 1800-2100 rpm
Minimum Power 385 hp 287 kW
Emissions Brazil MAR-1, UN ECE R96 Stage IIIA Brazil MAR-1, UN ECE R96 Stage IIIA
Number of Cylinders In-line 6 In-line 6
Cycle 4 stroke 4 stroke
Bore 5.1 in 130 mm
Stroke 6.2 in 157 mm
Displacement 763 in³ 12.5 l
Compression Ratio 17.0:1 17.0:1
Aspiration Turbocharged aftercooled Turbocharged aftercooled
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment DOC+DPF+SCR DOC+DPF+SCR
Cooling System Liquid Liquid
Length 92 in 2328 mm
Width 50 in 1271 mm
Height 71 in 1816 mm
Dry Weight 3730 lb 1692 kg

2206D-E13TA Standard Equipment

Print

Air System

  • Air-to-air aftercooled
  • Front or rear exhaust configurations available

Control System

  • Programmable ratings
  • Automatic altitude compensation
  • Configurable software features
  • Engine monitoring system SAE J1939 broadcast and control
  • Integrated, advanced electronic control module (ECU)
  • Over-foam wiring harness
  • Power compensated for fuel temperature
  • Remote fan control

Cooling System

  • Jacket water pump, centrifugal
  • Detailed guidance on cooling system design and validation available to ensure machine reliability

Flywheel and Flywheel Housing

  • Standard SAE No. 1 flywheel housing with SAE No. 14 or 140 flywheels

Fuel System

  • Mechanical electronic unit injection (MEUI) system
  • Fuel Transfer and priming pump
  • Remote fuel filter configuration available

General

  • Lifting eyes
  • Vibration damper

Oil System

  • Choice of front, rear or centre sumps
  • Gear-driven oil pump
  • Oil cooler
  • Oil dipstick
  • Oil filler

Power take-off

  • Available SAE No. 1 flywheel housings with rear power take-off (PTO) drive options for SAE B, SAE C, or a combination
  • Engine power can also be taken from the front of the engine on some applications

2206D-E13TA Optional Equipment

Print

Industrial Power Unit

  • Factory-installed cooling pack which includes the radiator, the air-to-air aftercooler (ATAAC), coolant lines to and from the radiator, and air lines to and from the ATAAC.
  • Factory-installed engine-mounted aftertreatment system, pre-connected exhaust air lines, and air cleaners
  • Factory-installed instrument / control panels embedded with telematics units
