Overview

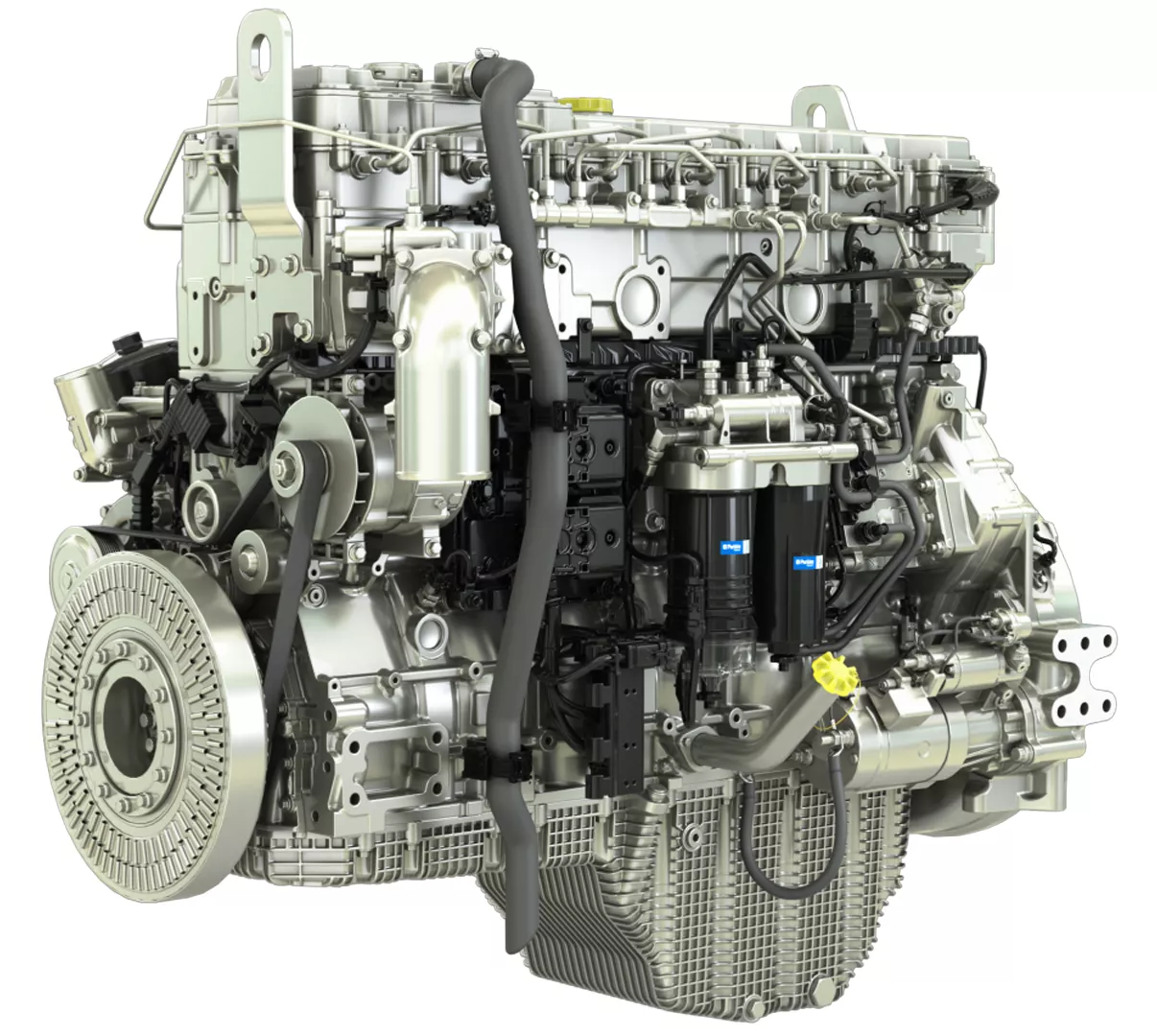

The Perkins® 2606D-E13TA industrial engine is equipped withwastegate-turbocharged, common rail direct injection technology,meeting UN ECE R96 Stage IIIA and Brazil MAR-1 emission standards.
Industrial Diesel Engines 2606D-E13TA 2606D-E13TA
Key Specs
- Maximum Power
- 690 hp
- 515 kW
- Maximum Torque
- 2360 lb-ft @ 1300 rpm
- 3200 Nm @ 1300 rpm
- Emissions
- UN ECE R96 Stage IIIA, Brazil MAR-1
- UN ECE R96 Stage IIIA, Brazil MAR-1
Perkins product brochures and other informational documents are available for your growing business.
Features At A Glance
Powerful performance
Powerful performance
Focused on delivering power density and performance in a compact package, the 12.9 litre engine provides an
impressive 40 kW/L (53.5 hp/L), at 0.45 kW/kg (0.27 hp/lb), making it an ideal choice for a broad range of options
including agricultural, materials handling, construction, mining, aircraft ground support, and other industrial
applications.
impressive 40 kW/L (53.5 hp/L), at 0.45 kW/kg (0.27 hp/lb), making it an ideal choice for a broad range of options
including agricultural, materials handling, construction, mining, aircraft ground support, and other industrial
applications.
Optimised fuel consumption
Optimised fuel consumption
Fuel consumption has been optimised to match operating cycles for a wide range of ambient and altitude conditions, encouraging standardisation across numerous applications or OEM variants to help reduce your variety. These engine variants are compatible with up to B100 biofuels and 100% HVO, helping to reduce lifecycle CO2 emissions, reduce costs of ownership, while improving performance. To preserve the performance and integrity of the engine whilst reducing the risk of downtime or failure, fuels must meet the specifications and characteristics described in official Perkins fluids guideline documents found on https://www.perkins.com/en_GB.html.
Simplified maintenance
Simplified maintennace
Service and maintenance have been simplified or completely removed via strategies including hydraulic lash
adjusters (HLA), the removal of all loose washers, and 1,000 hour oil and fuel change intervals.
adjusters (HLA), the removal of all loose washers, and 1,000 hour oil and fuel change intervals.
Product Specifications for 2606D-E13TA
Power Rating
| Maximum Power | 690 hp 515 kW |
| Maximum Torque | 2360 lb-ft @ 1300 rpm 3200 Nm @ 1300 rpm |
| Rated Speed | 1800-2100 rpm 1800-2100 rpm |
| Minimum Power | 456 hp 340 kW |
Emission Standards
| Emissions | UN ECE R96 Stage IIIA, Brazil MAR-1 UN ECE R96 Stage IIIA, Brazil MAR-1 |
General
| Number of Cylinders | 6 inline 6 inline |
| Cycle | 4 stroke 4 stroke |
| Bore | 5.1 in 130 mm |
| Stroke | 6.4 in 162 mm |
| Displacement | 787.2 in³ 12.9 l |
| Compression Ratio | 16.5:1 16.5:1 |
| Aspiration | Turbocharged aftercooled Turbocharged aftercooled |
| Combustion System | Direct injection Direct injection |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Cooling System | Liquid Liquid |
Engine Dimensions*
| Length | 54 in 1381 mm |
| Width | 38 in 969 mm |
| Height | 50 in 1273 mm |
| Dry Weight | 2544 lb 1154 kg |
Disclaimer
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
2606D-E13TA Standard Equipment
Air System
- Air-to-air aftercooled
- Front or rear exhaust configurations available
- Wastegated turbocharger
Control System
- Automatic altitude compensation
- Configurable software features
- Engine monitoring system SAE J1939 broadcast and control
- Integrated, advanced electronic control module (ECU)
- Power compensated for fuel temperature
- Remote fan control
Cooling System
- Centrifugal water pump
- Detailed guidance on cooling system design and validation available to ensure machine reliability
- Fluids module, which includes: water pump, oil cooler, top-service cartridge oil filter (optional), dual coolant thermostats, and single oil thermostat
Flywheels and Flywheel Housing
- Multiple Flywheel Housing configurations, featuring a basic, standard and heavy duty PTO setup
- Standard SAE No. 1 flywheel housing with SAE No. 14 or 140 flywheels
Fuel System
- Common rail direct injection fuel system with zero-static leak injectors.
- Fuel manifold which allows for outboard or rearward fuel return-to-tank plumbing, as well as coolant supply
- Fuel module, which includes: primary and secondary cartridge filters, and a manual or electric priming pump
- Remote fuel module available
- Oil-lubricated high pressure fuel and mechanical fuel transfer pump combination
General
- Lifting eyes
- Vibration damper
Oil System
- Choice of front, rear or center sumps
- Gear-driven oil pump
- No-mess service oil filter drainback feature built into fluids module
- No-service-needed passive open crankcase ventilation filtration system built into the valve cover
- Oil cooler
- Oil dipstick
- Oil filler
- Oil level sensor
- Open crankcase ventilation system with fumes disposal
- Remote oil filter variant of the fluids module available
Power Take Off (PTO)
- Up to 5 additional power take-offs: 2 rear facing (SAE B, C, or D), 2 forward-facing (SAE A or SAE B), and an additional low-mount forward-facing (SAE B)
