1706D-E93TA

Industrial Diesel Engines 1706D-E93TA

Key Specs

Maximum Power
416 hp
310 kW
Maximum Torque
1335 lb-ft @ 1400 rpm
1810 Nm @ 1400 rpm
Emissions
China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA
China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA

Tools And Expert Help At Every Turn

Overview

The Perkins® 1706D-E93TA is a 6 cylinder, 9.3 litre engine that produces up to 310 kW (416 hp) of power and 1810 Nm (1335 lb-ft) of torque out of a compact, lightweight package. The 1706D model is a platform extension of the 1706J and meets China Nonroad Stage III, Brazil MAR-1, and UN R96 Stage IIIA emission standards and UN R120 performance standard for measurement of net power and specific fuel consumption.

Media Gallery

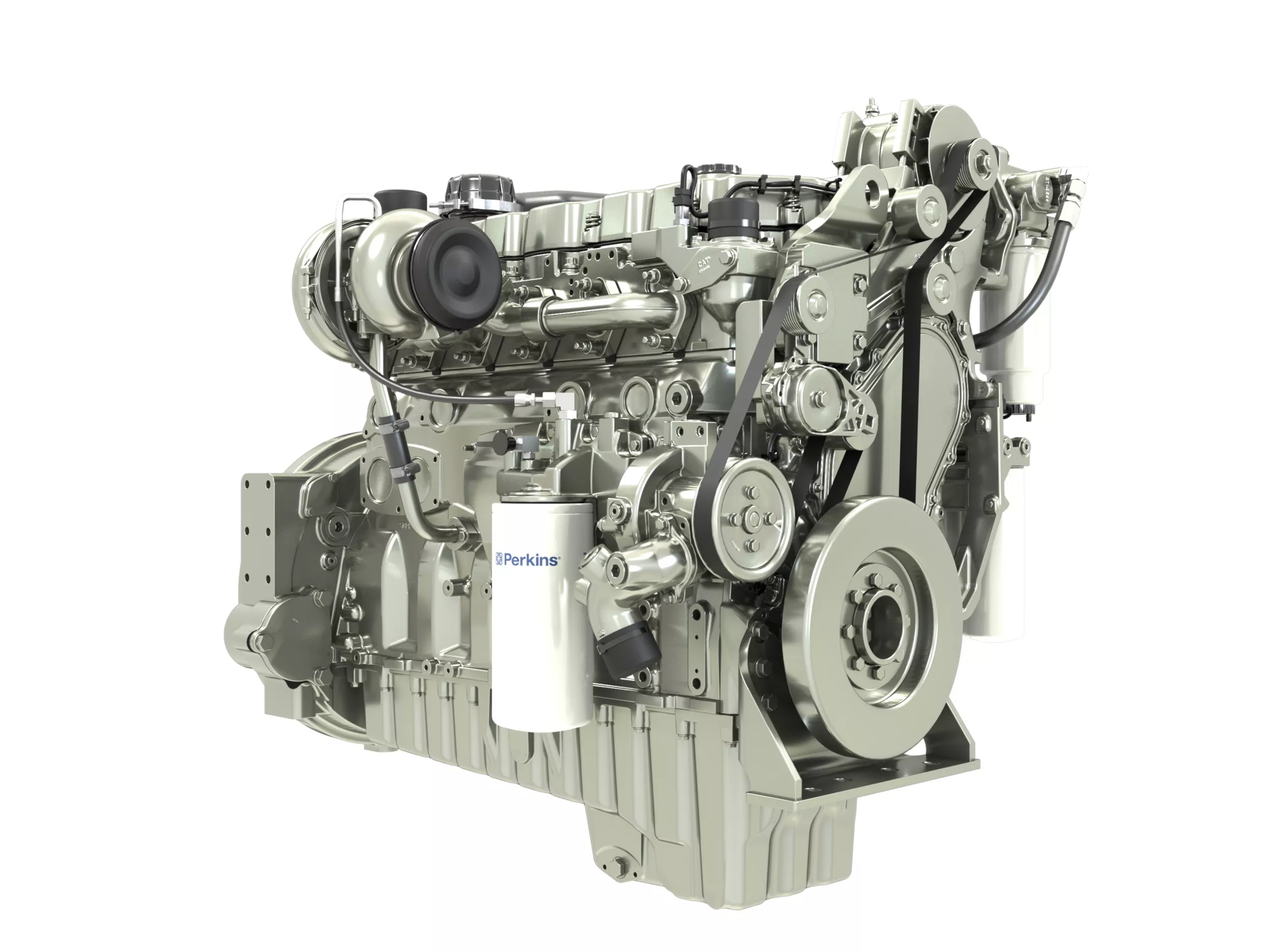

1706D-E93TA Industrial Diesel Engine

Features At A Glance

Perkins

A lifetime of low cost

High power and torque density, providing the opportunity to downsize in engine displacement without sacrificing performance or reliability
Perkins

Dependable power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation and many hours of productive life
Perkins

High performance

High power and torque density, providing the opportunity to downsize in engine displacement without sacrificing performance or reliability
Specifications Standard Equipment Optional Equipment

Product Specifications for 1706D-E93TA

Download Print
Maximum Power 416 hp 310 kW
Maximum Torque 1335 lb-ft @ 1400 rpm 1810 Nm @ 1400 rpm
Rated Speed 1800-2200 rpm 1800-2200 rpm
Minimum Power 308 hp 230 kW
Emissions China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA
Number of Cylinders 6 inline 6 inline
Cycle 4 stroke 4 stroke
Bore 4.5 in 115 mm
Stroke 5.8 in 149 mm
Displacement 567.5 in³ 9.3 l
Compression Ratio 16.5:1 16.5:1
Aspiration Turbocharged aftercooled Turbocharged aftercooled
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment - -
Cooling System Liquid Liquid
Length 44 in 1125 mm
Width 31 in 791 mm
Height 42 in 1068 mm
Dry Weight 1907 lb 865 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

1706D-E93TA Standard Equipment

Print

Air System

  • Turbocharged aftercooled

Electrical and Electronics

  • All connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
  • Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines
  • Full electronic control system with all system functions controlled from a single, engine-mounted electronic control module (ECM)

Cooling System

  • Detailed guidance on cooling system design and validation available to ensure machine reliability
  • Vertical outlet thermostat housing, centifugal water pump

Flywheel and Flywheel Housing

  • Wide choice of drivetrain interfaces, SAE2 and SAE1 configurations

Fuel System

  • High Pressure Common rail fuel system

Oil System

  • Choice of sumps for different applications
  • Oil cooler, oil filler, oil filter, oil dipstick, oil pump (gear-driven)

Power Take-Off (PTO)

  • Engine power can also be taken from the front of the engine on some applications
  • Available SAE No. 1 flywheel housings with rear power take-off (PTO) drive options for SAE B, SAE C or combination.

1706D-E93TA Optional Equipment

Print

Oil System

  • Open crankcase ventilation system with fumes disposal (optional OCV filter system)
