904EA-E36TA

Industrial Diesel Engines 904EA-E36TA

Key Specs

Maximum Power
110 hp
82 kW
Maximum Torque
332 lb-ft @ 1500 rpm
450 Nm @ 1500 rpm
Emissions
China NR IV
China NR IV

Tools And Expert Help At Every Turn

Overview

The 904 Series engines offer a compact power solution for off-highway applications in construction and industrial.

For our customers these compact, 4 cylinder engines provide excellent performance in power, peak and low speed torque, fuel consumption and transient response.

Reliability and easy service access are integral to the design of the engines. It is available with a range of installation options to enable OEMs to minimise the size of the engine bay of their machines.

Media Gallery

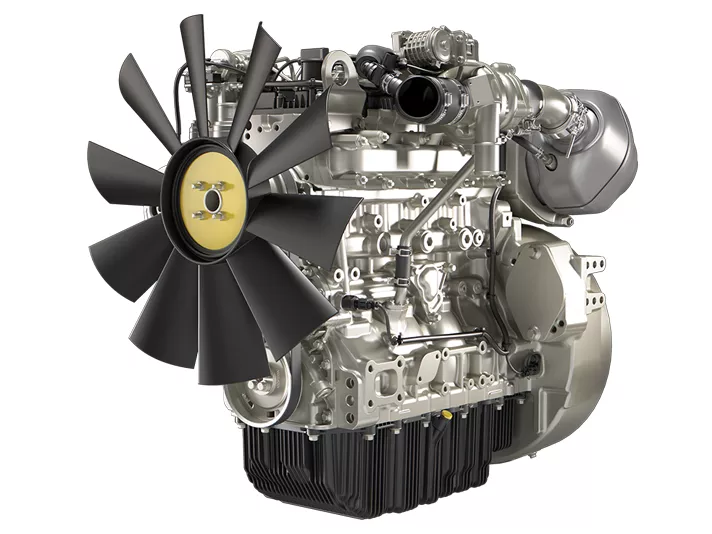

904EA-E36TA Industrial Diesel Engine

Features At A Glance

Displaying 1-6 of 4

Perkins

A lifetime of low cost

The fuel consumption is optimised to match the operating cycles of a wide range of off-highway applications.Hydraulic tappets, multi-vee belts and 500 hour service intervals enable low cost maintenance.
Perkins

Dependable power

The engine has been designed using the latest predictive engineering methods, combined with an extensive fieldvalidation program to ensure reliable power in the toughest off-highway conditions.Quality, reliability and consistency are assured. Our facilities worldwide employ the same efficient processes,the same tested and validated components, and the same stringent quality controls wherever your engines aremanufactured.
Perkins

Industry leading flexibility

A modular engine concept allows OEMs to design one engine installation for different regions. This reduces cost and development time for cooling pack, mounting, hydraulic and control interfaces
Perkins

Local support, global coverage

Perkins recognise that the customer relationship is important to machine manufacturers and we can offer a range of flexible solutions to help provide appropriate support, either to the OEM's network or directly to the machine customer.
Specifications Standard Equipment

Product Specifications for 904EA-E36TA

Download Print
Maximum Power 110 hp 82 kW
Maximum Torque 332 lb-ft @ 1500 rpm 450 Nm @ 1500 rpm
Rated Speed 2200 rpm 2200 rpm
Minimum Power 99 hp 74 kW
Emissions China NR IV China NR IV
Number of Cylinders 4 inline 4 inline
Cycle 4 stroke 4 stroke
Bore 3.9 in 98 mm
Stroke 4.7 in 120 mm
Displacement 220.9 in³ 3.6 l
Compression Ratio 17.0:1 17.0:1
Aspiration Turbocharged aftercooled Turbocharged aftercooled
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment DOC+DPF DOC+DPF
Cooling System Liquid Liquid
Length 26.3 in 667 mm
Width 22.2 in 564 mm
Height 31 in 787 mm
Dry Weight 838 lb 380 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

904EA-E36TA Standard Equipment

Print

Electrical and Electronics

  • 12 or 24V systems
  • Data interface via CANbus J1939
  • Full electronic control
  • Glow plugs for best cold starting with minimum battery impact
  • High power alternator and starter motor options
  • Sensors and robust wiring harness included

Flywheel and Flywheel Housing

  • SAE3 or SAE4 flywheel housing
  • Wide choice of interfaces for common transmissions and hydraulic pumps

Fuel System

  • Electronic high pressure common rail
  • Fuel filter - chassis mounted
  • Water sensor included - early warning for operator

General

  • Cold-start capable with standard equipment to -20°C
  • Supplied painted or lacquered

Oil System

  • Oil filters. Mounting options available on either side of the engine, plus remote
  • Dipsticks. Choice of position and length
  • Oil fillers. Multiple locations on engine to allow for choice of service access
  • High incline sump. 35° continuous in all directions. Suitable for machines that are used on steep slopes

Power Take-Off (PTO)

  • SAE-A and SAE-B interfaces available

Aftertreatment Equipment

  • Aftertreatment mounted on engine as standard, remote available
